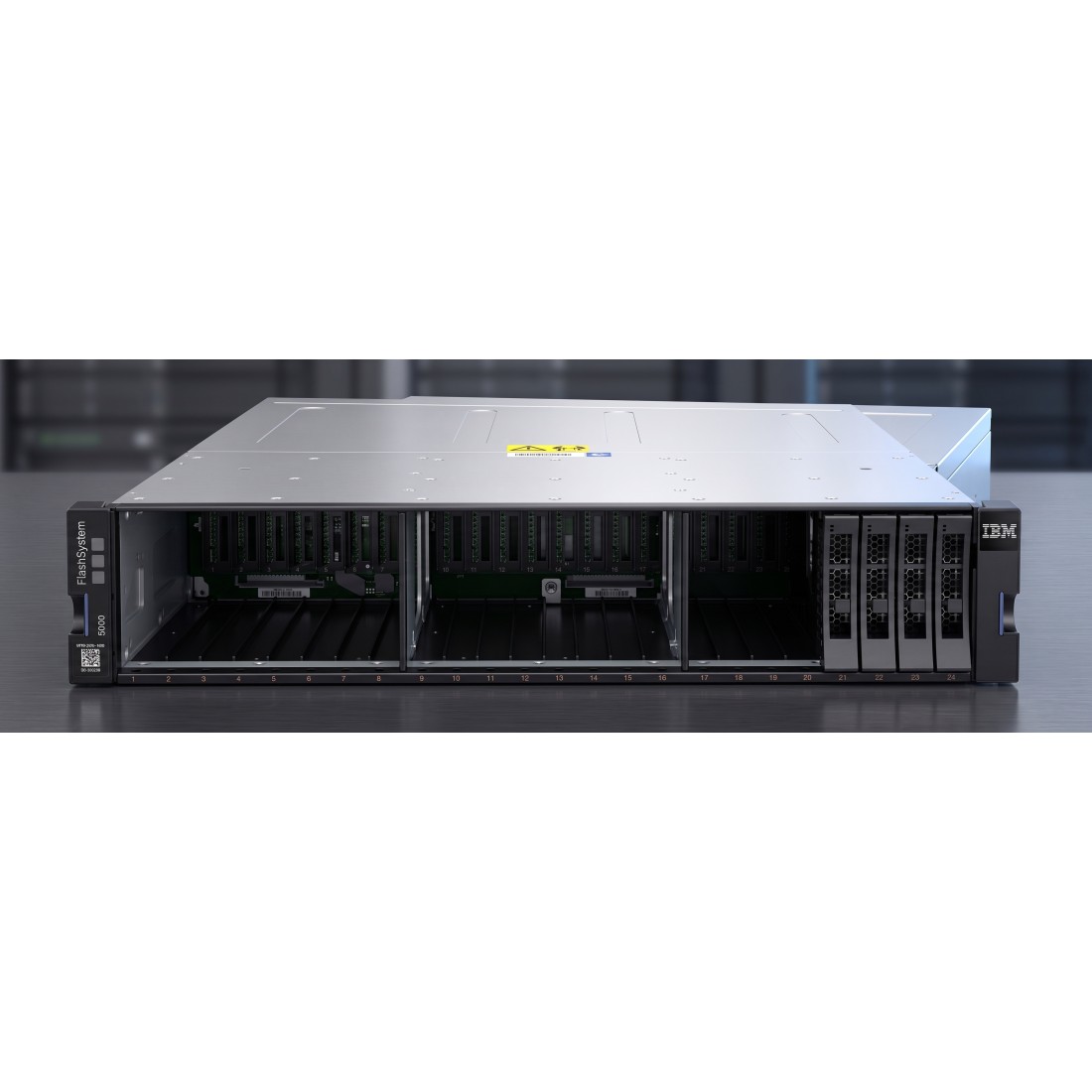

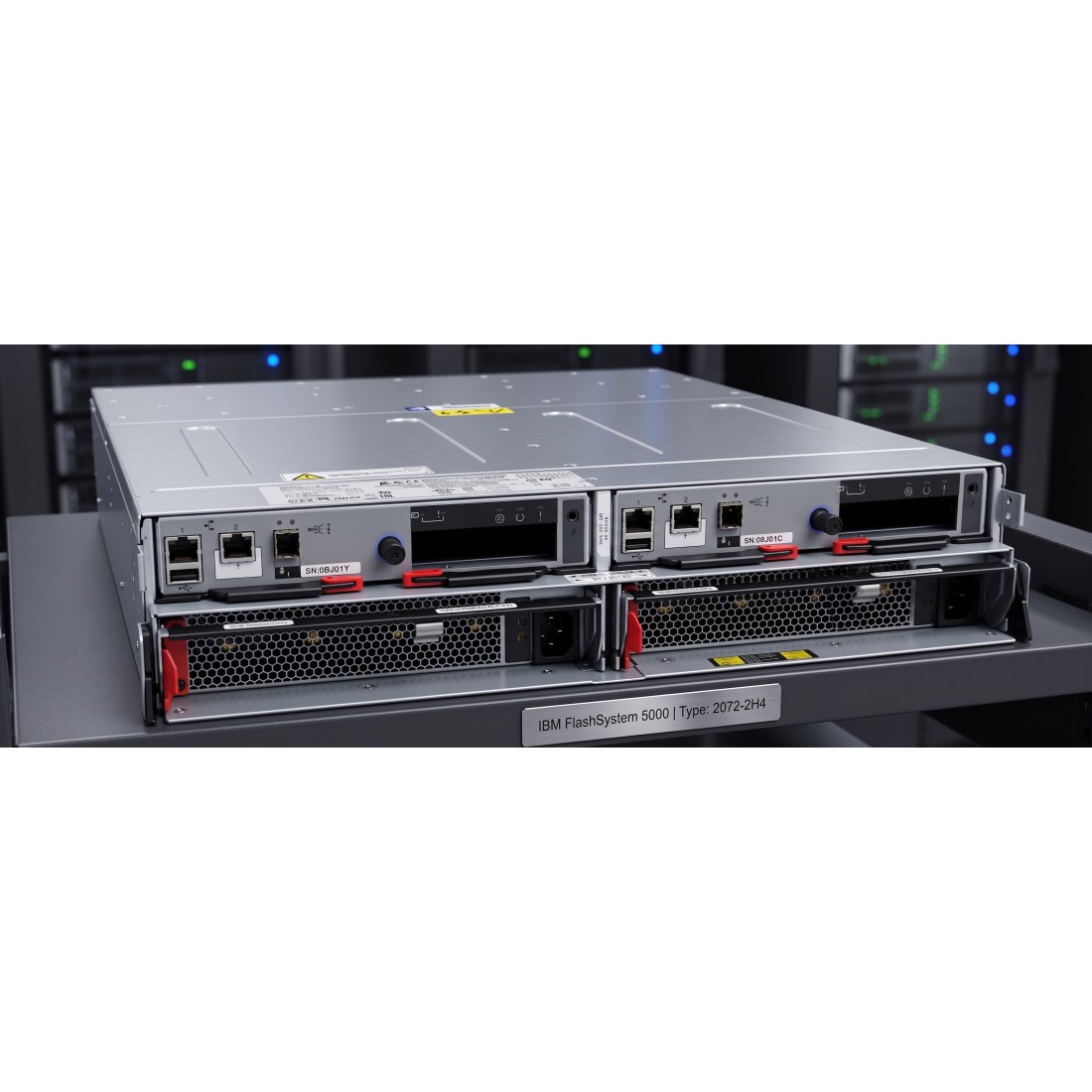

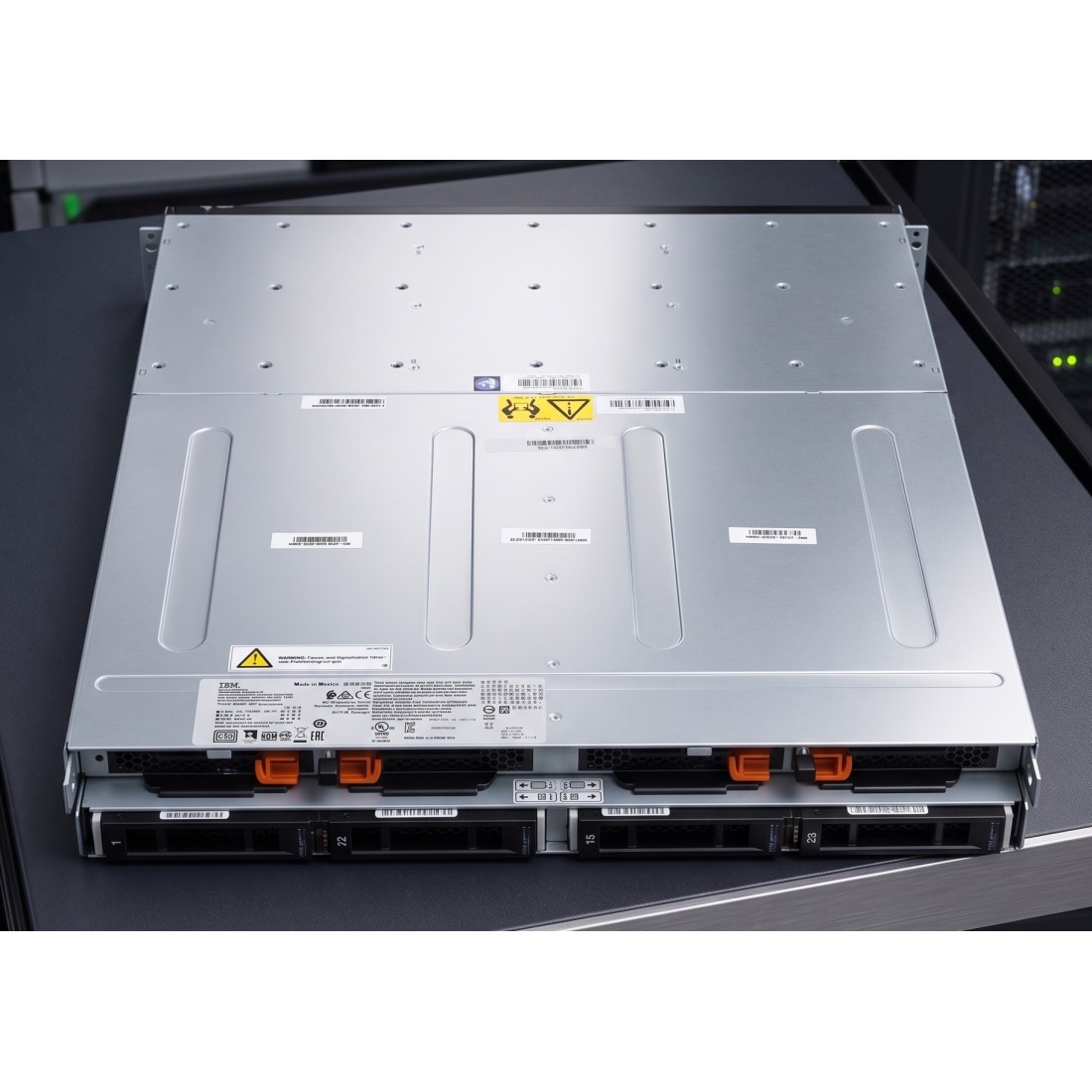

2072-2H4 IBM FlashSystem 5010 SFF Control Enclosure

2072-2H4 IBM FlashSystem 5010 SFF Control Enclosure is in refurbished condition, includes warrany, support and is on sale. The IBM FlashSystem 5010 SFF Control Enclosure model 2072-2H4 can be purchased as an empty control enclosure or configured to your specifications. The 2072-2H4 IBM FlashSystem 5010 SFF Control Enclosure has the following capabilities and specifications.

Two node canisters with a two-core processor per canister
Memory: 16 GB cache (8 GB per canister) with optional 32 GB cache (16 GB per canister) or 64 GB cache (32 GB per canister)
720 TB SSD Raw Storage Capacity
1 Gb iSCSI connectivity standard with optional 16 Gb FC, 12 Gb SAS, 10 Gb iSCSI (optical), 25 Gb iSCSI (optical), 1 Gb iSCSI connectivity
12 Gb SAS port for expansion enclosure attachment
Twelve slots for 3.5-inch LFF SAS drives (Model 2H2) and 24 slots for 2.5-inch SFF SAS drives (Model 2H4)
2U, 19-inch rack mount enclosure with 100 - 240 V AC or -48 V DC power supplies

The 2072-2H4 IBM FlashSystem 5010 SFF Control Enclosure can be configured with the followiing features for purchase:

00D2142 - Host 0.6 m mSAS-mSASHD
00D2144 - Host 1.5 m mSAS-mSASHD
00D2148 - Host 3 m mSAS-mSASHD
00RY190 - 16 Gbps SW SFP
00RY191 - 16 Gbps LW SFP
00RY309 - Rack rail kit
00RY543 - CMOS coin cell battery
00WK715 - Power cord - DC
00Y2512 - SFF Enclosure bezel, right
01AC311 - DC Power supply
01AC366 - Node canister battery
01AC381 - SFF Enclosure midplane.
01AC404 - AC power supply
01EJ183 - Node canister memory (16 GB SODIMM)
01EJ184 - 12 Gbps SAS 4-port adapter
01EJ186 - 10 Gbps Ethernet 4-port adapter
01EJ187 - 16 Gbps FC 4-port adapter
01EJ495 - CMOS coin cell battery
01FT777 - 25 Gbps short wave SFP28 (RoCE)
01LJ588 - 2-port 25 Gbps Ethernet (RoCE) adapter
01LJ589 - 2-port 25 Gbps Ethernet (iWARP) adapter
01NN193 - 25 Gbps short wave SFP28 (iWARP)
01YM898 - 32 Gbps 4-port FC adapter
02PX475 - 30 TB Flash Drive 2.5" in SFF carrier
02PX516 - FlashSystem 5010 node canister
02PX516 - FlashSystem 5015 node canister
02PX518 - Control enclosure left bezel
02PX539 - 2.4 TB 10 K 2.5" HDD in SFF carrier
02PX540 - 800 GB 3DWPD Flash Drive 2.5" in SFF carrier
02PX541 - 1.92 TB Flash Drive 2.5" in SFF carrier
02PX542 - 3.84 TB Flash Drive 2.5" in SFF carrier
02PX543 - 7.68 TB Flash Drive 2.5" in SFF carrier
02PX544 - 15.36 TB Flash Drive 2.5" in SFF carrier
02PX560 - 32 Gbps FC LW SFP
02PX587 - 900 GB 10 K 2.5" HDD in SFF carrier
02PX588 - 1.2 TB 10 K 2.5" HDD in SFF carrier
02PX589 - 1.8 TB 10 K 2.5" HDD in SFF carrier
02PX590 - 2 TB 7.2 K 2.5" NL HDD in SFF carrier
02YC270 - Node canister memory (8 GB SODIMM)
15R8848 - 25 m OM3 optical cable
31P1630 - 10 Gbps SW SFP
33F8354 - CMOS coin cell battery
39M5080 - Power cord - Chicago
39M5081 - Power cord - US / Group 1
39M5377 - Power cord - 10 amp outlet F PDU (“C13-C14” cable)
39M5392 - Power cord - 16 amp outlet J PDU
41V2120 - 10 m OM3 optical cable
45D4773 - 1 m OM3 optical cable
45D4774 - 5 m OM3 optical cable
45W8680 - SFF drive blank
