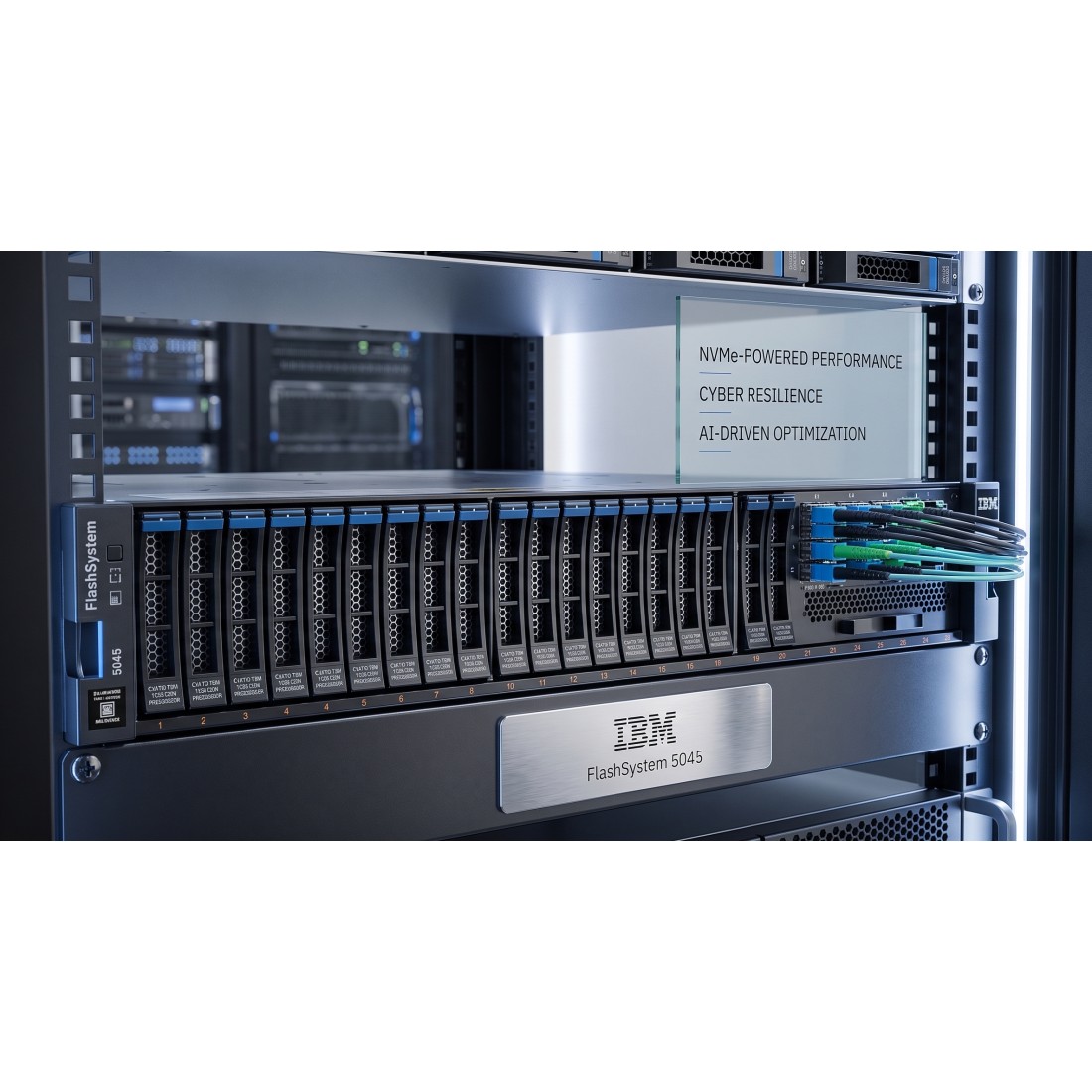

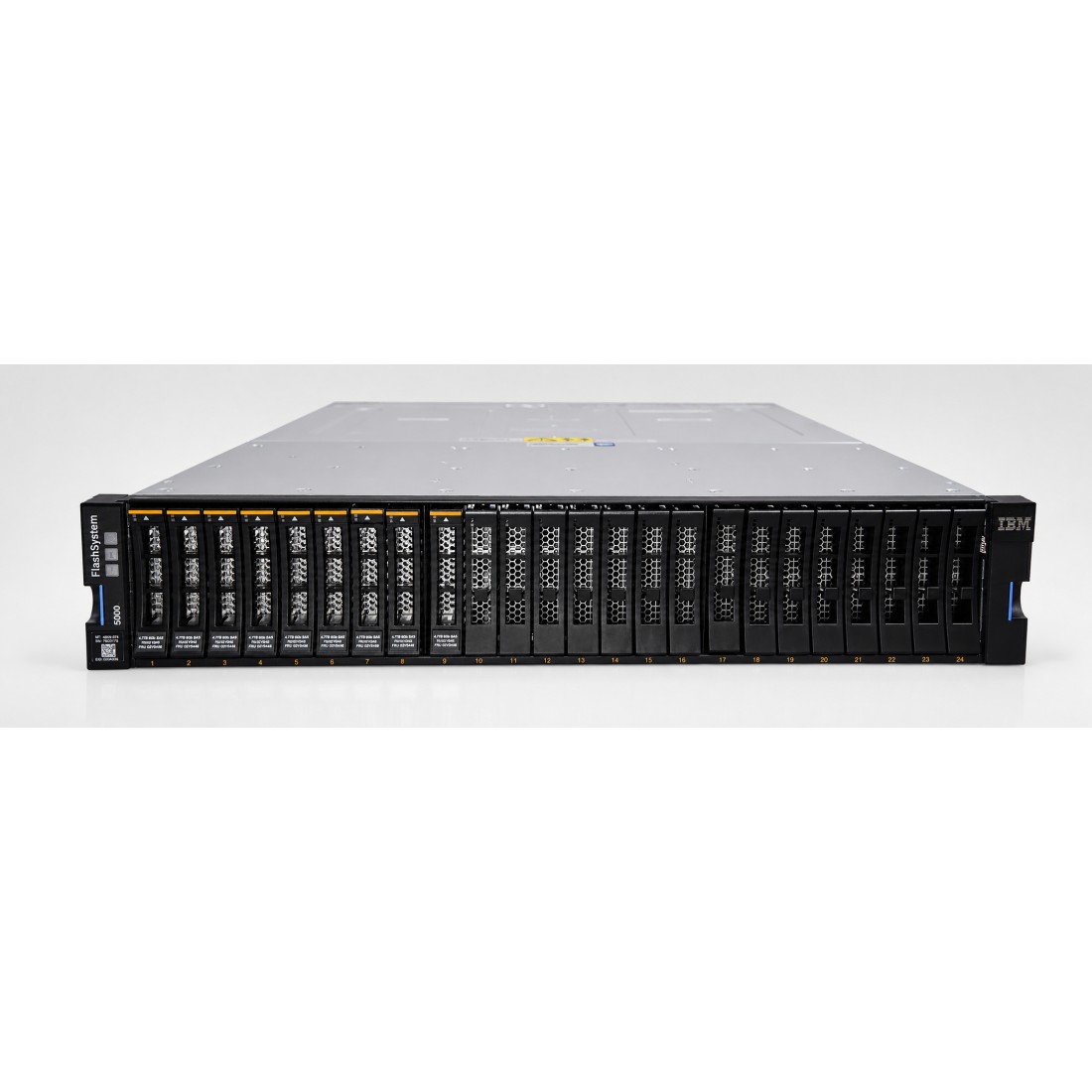

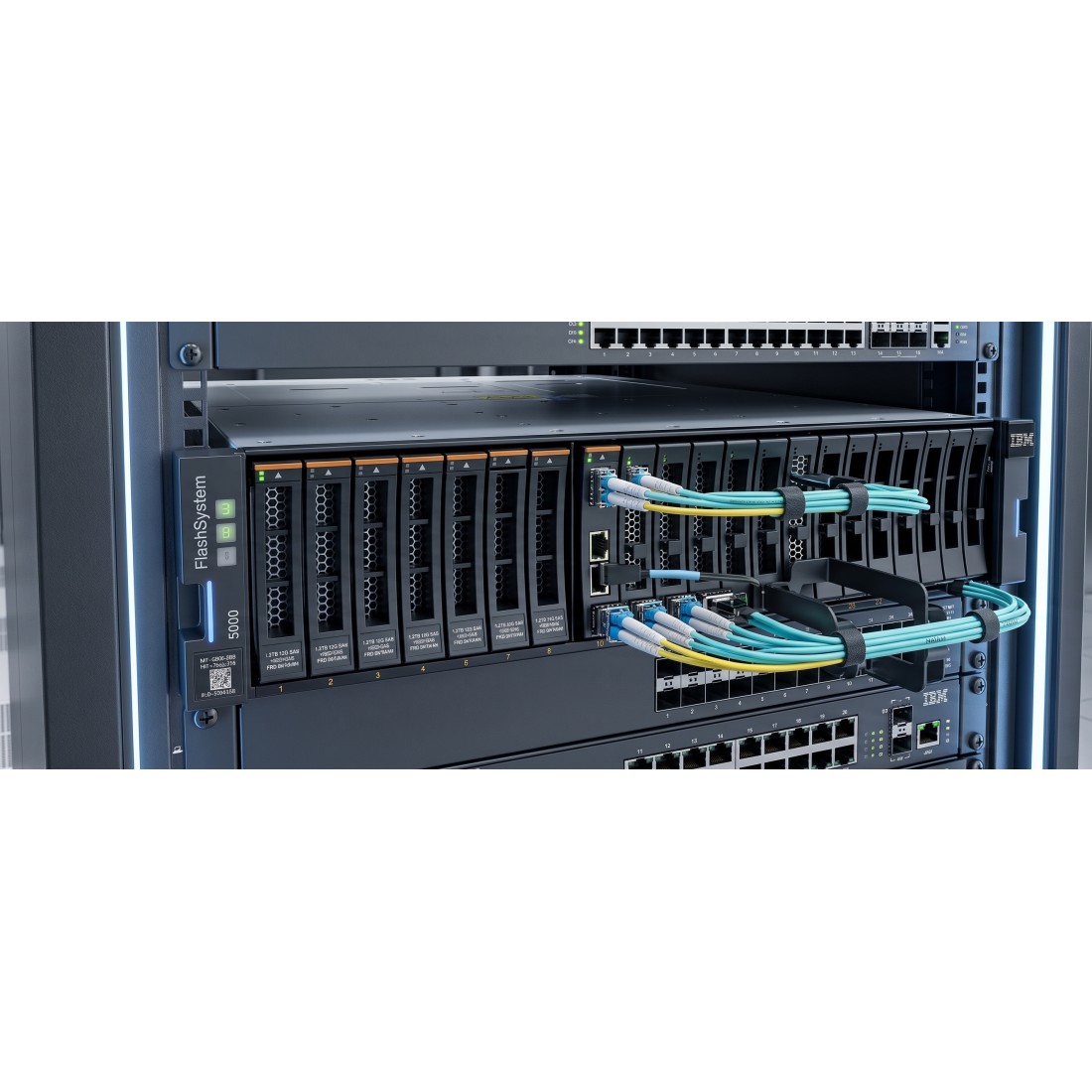

IBM FlashSystem 5045 FS5045 4680-3P4 SFF Dual Control Enclosure

The IBM FlashSystem 5045 FS5045 4680-3P4 SFF Dual Control Enclosure features dual node canisters with a six-core processor and up to 64 GB cache in a compact 2U, 19-inch rack mount enclosure. The IBM FlashSystem 5045 includes10 Gb iSCSI connectivity standard, with optional 16 Gb FC, 12 Gb SAS, 10 Gb iSCSI, and 25 Gb iSCSI connectivity. The IBM FS5045 has twenty-four 2.5-inch SAS drive slots and supports the attachment of up to twelve 2U expansion enclosures or up to four 5U expansion enclosures or a combination of 5U and 2U not exceeding 24U in total. The IBM FS5045 FlashSystem 4680-3P4 supports up to 504 drives per system or up to 1,008 drives in a cluster. View the IBM FS5045 FlashSystem 5045 Data Sheet.

IBM FlashSystem 5045 FS5045 4680-3P4 maximum capabilities

Raw capacity is measured before RAID protection, metadata and spare capacity. Usable capacity will be lower. The 440-drive configuration includes four 92H and two 24H expansion enclosures plus the 24 internal bays. Expansion and clustering limits must be checked against the installed software level.

IBM FS5045 performance specifications

These are separate IBM-published maxima, not simultaneous workload guarantees. Read hits are served from cache; read misses require access to the storage backend. Actual performance depends on drives, RAID layout, host connectivity, block size, read/write mix and enabled data services.

The IBM FS5045 4680-3P4 can be custom configured to meet your requirements, or you may purchase individual features and parts for a FlashSystem upgrade. All IBM FlashSystem orders include warranty and support, and all IBM FlashSystems are eligible for IBM Maintenance and Support.

The IBM FlashSystem 5045 Model 4680-3P4 supports attachment for up to twelve 2U FlashSystem 5000 expansion enclosures or up to four 5U FlashSystem 5000 expansion enclosures or a combination of 5U and 2U enclosures not exceeding 24U in total, delivering support for up to 504 drives or 1,008 in a two-way clustered system.

Support for Safeguarded Copy, Easy Tier, FlashCopy, Remote Mirroring, system clustering, and HyperSwap
Data reduction pools with deduplication, compression, and thin provisioning for improved storage efficiency
Encryption of data at rest stored within the FlashSystem 5045 system

IBM FlashSystem 5045 Model 4680-3P4 includes:
A 2U, 19-inch rackmount enclosure with either AC or DC power
Dual-active intelligent array node canisters
Twelve 3.5-inch LFF or twenty-four 2.5-inch SFF drive slots within the enclosure
Support for the attachment of FlashSystem 5000 12 Gb SAS expansion enclosures
I/O connectivity options for 16 Gb FC, 12 Gb SAS, 10 Gb iSCSI, or 25 Gb iSCSI
Innovative, intuitive web-based GUI for easy system setup and management
Virtualization of internal storage for rapid, flexible provisioning and simple configuration changes
Distributed RAID 1, 5, and 6
Extensive interoperability support with support for most major server platforms and operating systems
One-way data migration to easily move your data onto a FlashSystem 5000 system
FlashSystem 5045 support the attachment of FlashSystem 5000 expansion enclosure models 4680-12H, 4680-24H, and 4680-92H. Model 4680-12H (LFF) supports up to twelve 3.5-inch drives, while Model 4680-24H (SFF) supports up to twenty-four 2.5-inch drives. Model 4680-92H holds ninety-two 3.5-inch SAS drives. High-performance disk drives, high-capacity nearline disk drives, and flash (solid state) drives are supported. Drives of the same form factor can be intermixed within an enclosure, and LFF and SFF expansion enclosures can be intermixed within a FlashSystem 5000 system.

All FlashSystem 5045 functional capabilities are provided through IBM Storage Virtualize licensed machine code.

2.5-inch SFF drives are supported:
AL80 1.92TB 2.5" Flash Drive (2072-2P4, 2072-3P4, 4680-24H)
AL81 3.84TB 2.5" Flash Drive (2072-2P4, 2072-3P4, 4680-24H)
AL82 7.68TB 2.5" Flash Drive (2072-2P4, 2072-3P4, 4680-24H)
AL83 15.36TB 2.5" Flash Drive (2072-2P4, 2072-3P4, 4680-24H)
AL84 30.72TB 2.5" Flash Drive (2072-2P4, 2072-3P4, 4680-24H)
AL6B 2.4TB 10K 2.5 Inch HDD (2072-2P4, 2072-3P4, 4680-24H)

3.5-inch LFF drives are supported:
AL3B 8TB 7.2K 3.5 Inch NL HDD (2072-2P2, 2072-3P2, 4680-12H)
AL3D 12TB 7.2K 3.5 Inch NL HDD (2072-2P2, 2072-3P2, 4680-12H)
AL3F 16TB 7.2K 3.5 Inch NL HDD (2072-2P2, 2072-3P2, 4680-12H)
AL3H 20TB 7.2K 3.5 Inch NL HDD (2072-2P2, 2072-3P2, 4680-12H)
AL3J 24 TB 7.2K 12 Gb SAS NL 3.5 Inch HDD (2072-2P2, 2072-3P2, 4680-12H)
AL48 8TB 7.2K 3.5 Inch NL HDD (4680-92H)
AL4A 12TB 7.2K 3.5 Inch NL HDD (4680-92H)
AL4C 16TB 7.2K 3.5 Inch NL HDD (4680-92H)
AL4E 20TB 7.2K 3.5 Inch NL HDD (4680-92H)
AL4F 24 TB 7.2K 12 Gb SAS NL 3.5 Inch HDD (4680-92H)
AL45 2.4TB 10K 3.5 Inch HDD (4680-92H)
AL4J 1.92TB 3.5" Flash Drive (4680-92H)
AL4K 3.84TB 3.5" Flash Drive (4680-92H)
AL4L 7.68TB 3.5" Flash Drive (4680-92H)
AL4M 15.36TB 3.5" Flash Drive (4680-92H)
AL4N 30.72TB 3.5" Flash Drive (4680-92H)

Physical specifications
Height: 3.4 in. (8.7 cm)
Width: 19.0 in. (48.3 cm)
Depth: 21.9 in. (55.6 cm)
Approximate weight:
LFF control enclosure:
Empty: 38.3 lb (17.4 kg)
Fully configured: 61.0 lb (27.7 kg)
SFF control enclosure:
Empty: 38.9 lb (17.7 kg)
Fully configured: 57.2 lb (26.0 kg)
