IBM FlashSystem Enterprise Storage

IBM FlashSystem is IBM's enterprise storage family for high-performance databases, virtualization, IBM Power Systems, business-critical applications, cyber-resilient storage, backup, hybrid cloud and data-intensive workloads. IBM FlashSystem storage ranges from compact entry-level systems to high-performance enterprise NVMe platforms capable of supporting millions of IOPS and multi-petabyte storage environments.

Modern IBM FlashSystem systems combine IBM FlashCore Module technology, NVMe storage and IBM Storage Virtualize with enterprise data services such as compression, data reduction, encryption, snapshots, replication, high availability, storage virtualization and cyber-resilience capabilities. Because much of the FlashSystem portfolio uses the same IBM Storage Virtualize software foundation, organizations can maintain a consistent approach to storage management as capacity and performance requirements grow.

Midland Information Systems provides IBM FlashSystem systems, FlashCore Modules, NVMe flash drives, SAS drives, expansion enclosures, connectivity options, upgrades and replacement parts for current and previous-generation FlashSystem models. Systems can be configured according to capacity, performance, host connectivity, availability and workload requirements.

IBM FlashSystem Models

The IBM FlashSystem portfolio includes systems designed for different performance, capacity and application requirements. Current platforms emphasize dense NVMe storage and IBM FlashCore technology, while previous-generation FlashSystems remain widely deployed and continue to require upgrades, replacement drives, adapters, expansion enclosures and maintenance hardware.

Current IBM FlashSystem Storage

Current IBM FlashSystem systems are designed around high-density flash, IBM Storage Virtualize and modern enterprise connectivity. The product family allows organizations to select a platform according to required IOPS, bandwidth, latency, capacity, rack space and workload requirements.

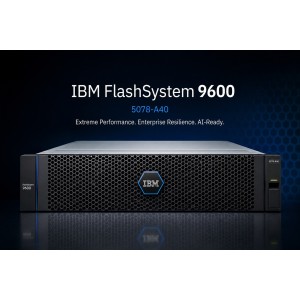

IBM FlashSystem 9600 FS9600 5078-A40

The IBM FlashSystem 9600 5078-A40 is IBM's flagship enterprise FlashSystem platform for large-scale, performance-intensive storage environments. Its 2U all-NVMe architecture supports up to 32 EDSFF NVMe drives and dual active-active node canisters.

• Maximum IOPS: Up to 6.3 million
• Maximum read bandwidth: Up to 86 GB/s
• Memory: 1.5 TB or 3 TB
• Drive architecture: Up to 32 EDSFF NVMe drives
• Flash technology: IBM FlashCore Module 5 and supported NVMe SSDs
• Connectivity: Fibre Channel, NVMe/FC, iSCSI and NVMe/TCP options

IBM FlashSystem 7600 FS7600 5075-A30

The IBM FlashSystem 7600 5075-A30 is a high-performance enterprise NVMe storage system designed for demanding databases, virtualization, IBM Power Systems and mixed workloads. Its compact 2U enclosure provides 32 EDSFF NVMe drive positions and dual active-active controllers.

• Maximum IOPS: Up to 4.3 million 4K reads
• Maximum read bandwidth: Up to 55 GB/s
• Published response time: Sub-50 microsecond capability
• Memory: 768 GB or 1.5 TB
• Internal NVMe slots: 32
• Maximum I/O ports: Up to 32

IBM FlashSystem 5600 FS5600 5127-A20

The IBM FlashSystem 5600 5127-A20 provides enterprise NVMe storage in a compact 1U enclosure. It supports up to 12 EDSFF NVMe drives and offers the same IBM Storage Virtualize software foundation used across higher-end FlashSystem systems.

• Maximum IOPS: Up to 2.6 million 4K reads
• Maximum read bandwidth: Up to 30 GB/s
• Published response time: Under 50 microseconds
• Memory: 256 GB or 512 GB
• NVMe slots: 12
• Flash technology: IBM FlashCore Module 5

Previous-Generation IBM FlashSystem Models

Previous-generation IBM FlashSystems remain important in enterprise environments. Existing systems may continue to support production databases, IBM i, AIX, VMware and other applications for years after newer platforms are introduced. For these environments, organizations commonly require additional capacity, replacement FlashCore Modules, NVMe or SAS drives, cache upgrades, host adapters, expansion enclosures, power supplies and other service parts.

IBM FlashSystem 9500 FS9500 4983-AH8

The IBM FlashSystem 9500 is a high-end enterprise NVMe platform with 48 internal NVMe drive positions, substantial controller processing resources and extensive host connectivity. It supports IBM FlashCore Module 3 and FlashCore Module 4 technology.

• Up to 48 internal NVMe drives
• Up to approximately 3 TB of system memory
• 32 Gb and 64 Gb Fibre Channel
• 25 Gb and 100 Gb Ethernet options
• FCM3 and FCM4 support
• SAS flash expansion support

IBM FlashSystem 7300 FS7300 4657-924

The IBM FlashSystem 7300 combines enterprise NVMe performance, FlashCore Module technology, IBM Storage Virtualize and SAS expansion capability in a 2U architecture.

• 24 internal NVMe drive positions
• IBM FlashCore Module support
• Industry-standard NVMe SSD options
• SAS expansion enclosure support
• Fibre Channel and Ethernet host connectivity
• IBM Storage Virtualize enterprise data services

IBM FlashSystem 5300 FS5300 4662-7H2

The IBM FlashSystem 5300 4662-7H2 provides compact NVMe storage with IBM FlashCore technology and enterprise storage services.

• Maximum IOPS: Up to approximately 2.2 million
• Maximum bandwidth: Up to approximately 28.6 GB/s
• Latency: Sub-50 microsecond capability
• Internal NVMe slots: Up to 12
• Protocols: FC, NVMe/FC, iSCSI and NVMe/TCP

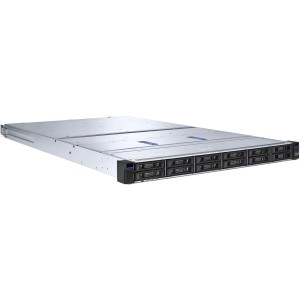

IBM FlashSystem 5200 FS5200 4662-6H2

The IBM FlashSystem 5200 is a compact enterprise NVMe storage platform designed for organizations requiring high performance in a small rack footprint. The FS5200 supports IBM FlashCore Modules, enterprise NVMe storage, Storage Virtualize and multiple expansion options.

IBM FlashCore Modules for FlashSystem

IBM FlashCore Modules, commonly abbreviated FCM, are IBM-developed NVMe storage devices used in supported IBM FlashSystem models. FlashCore technology combines enterprise flash storage with IBM-developed hardware and firmware capabilities designed to improve storage efficiency, performance, encryption and cyber resilience.

FlashCore Module compatibility depends on the specific FlashSystem generation, machine type and installed IBM Storage Virtualize software level. An FCM supported in one FlashSystem should not automatically be assumed to be compatible with another model.

IBM FlashCore Module 3 – FCM3

• ADSA – 4.8 TB FlashCore Module 3
• ADSB – 9.6 TB FlashCore Module 3
• ADSC – 19.2 TB FlashCore Module 3
• ADSD – 38.4 TB FlashCore Module 3

IBM FlashCore Module 4 – FCM4

• ADSE – 4.8 TB FlashCore Module 4
• ADSF – 9.6 TB FlashCore Module 4
• ADSG – 19.2 TB FlashCore Module 4
• ADSH – 38.4 TB FlashCore Module 4

IBM FlashCore Module 5 – FCM5

Current-generation IBM FlashSystem 5600, 7600 and 9600 platforms use IBM FlashCore Module 5 technology. Available capacities vary by system and include high-density EDSFF designs intended to increase both storage capacity and performance density.

IBM FlashSystem NVMe Storage

Modern IBM FlashSystem platforms use NVMe to reduce protocol overhead and increase storage parallelism compared with older SAS-based primary storage architectures. Depending on the model, internal storage can include IBM FlashCore Modules and supported industry-standard enterprise NVMe SSDs.

NVMe FlashSystem configurations are particularly well suited to:

• High-volume transaction processing
• IBM Db2 databases
• Oracle Database
• SAP and ERP systems
• VMware and virtualized server environments
• IBM Power Systems
• Analytics
• AI and machine-learning infrastructure
• Large-scale enterprise application consolidation

IBM Storage Virtualize

IBM Storage Virtualize provides the common software foundation for much of the IBM FlashSystem family. This allows FlashSystem storage to provide enterprise data services independently of the physical flash-media technology underneath the volumes.

Depending on the FlashSystem model, software level and licensed features, IBM Storage Virtualize capabilities can include:

• Thin provisioning
• Storage virtualization
• Snapshots and cloning
• Data compression
• Deduplication
• Encryption
• Distributed RAID
• Remote replication
• Policy-based replication
• High availability
• Safeguarded Copy
• Storage Insights integration
• External storage virtualization
• Data migration
• Automation and API integration

IBM FlashSystem Cyber Resilience

Cyber resilience has become an increasingly important part of enterprise storage design. Supported IBM FlashSystem configurations provide technologies designed to protect recovery data, identify anomalous activity and improve the ability to recover from ransomware or destructive cyberattacks.

Depending on the system and software configuration, IBM FlashSystem cyber resilience can include:

• Immutable Safeguarded Copy snapshots
• FlashCore Module ransomware-detection capabilities
• Storage Insights monitoring and analytics
• Encryption
• Replication
• Policy-based recovery architectures
• Integration with IBM Storage Defender

Learn more about IBM FlashSystem cybersecurity and cyber recovery

IBM FlashSystem for IBM Power Systems

IBM FlashSystem is widely used as external enterprise storage for IBM Power Systems running IBM i, AIX and Linux. Supported FlashSystem models can connect through Fibre Channel and other enterprise storage protocols, depending on the Power System, operating system and storage model. Common IBM Power Systems workloads stored on FlashSystem include:

• IBM i and Db2 for i
• AIX applications
• Oracle Database
• SAP
• ERP systems
• High-availability environments
• PowerHA
• Development and test systems
• Storage consolidation
• Disaster recovery

Legacy IBM FlashSystem Models

Midland provides systems, upgrades and replacement parts for many previous-generation IBM FlashSystem platforms. Exact machine-type searches are especially important when selecting replacement drives, adapters, memory or enclosure components because hardware compatibility differs substantially between FlashSystem generations.

• IBM FlashSystem 5010 – 2072-2H2 and 2072-2H4
• IBM FlashSystem 5015 – 2072-2N2 and 2072-2N4
• IBM FlashSystem 5030 – 2072-3H2 and 2072-3H4
• IBM FlashSystem 5035 – 2072-3N2 and 2072-3N4
• IBM FlashSystem 5100 – 2077-4H4 and 2078-4H4
• IBM FlashSystem 5200 – 4662-6H2
• IBM FlashSystem 7200 – FS7200 2076-824
• IBM FlashSystem 7300 – 4657-924

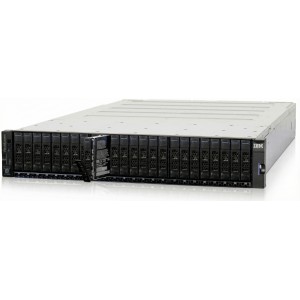

• IBM FlashSystem 9100 – FS9100 9110 and 9150-AF8
• IBM FlashSystem 9200 – FS9200 9846, 9848 and 4666
• IBM FlashSystem 9500 – 4983-AH8 and 4666-AH8

IBM FlashSystem Upgrades and Replacement Parts

IBM FlashSystem systems can be expanded or repaired using supported storage and hardware components. Midland supplies FlashSystem components for capacity upgrades, connectivity changes, system expansion and hardware replacement. Common IBM FlashSystem upgrade and replacement components include:

• IBM FlashCore Modules
• NVMe SSDs
• SAS SSDs and hard drives
• Expansion enclosures
• Cache and memory upgrades
• Fibre Channel adapters
• Ethernet adapters
• SAS adapters
• SFP and QSFP transceivers
• Node canisters
• Power supplies
• Batteries
• Fans
• Rails, bezels and enclosure hardware

Before ordering an IBM FlashSystem upgrade or replacement part, verify the machine type, model, installed Storage Virtualize level, feature code and physical FRU. Components with similar capacities or interfaces are not necessarily interchangeable between FlashSystem generations.

Choosing an IBM FlashSystem

Selecting the correct IBM FlashSystem requires more than comparing raw storage capacity. The performance and availability requirements of the application should determine the storage architecture.

Important IBM FlashSystem sizing considerations include:

• IOPS: Particularly important for databases and highly random workloads
• Latency: Critical for transaction-intensive applications
• Bandwidth: Important for analytics, backup and sequential workloads
• Usable capacity: Physical storage available after RAID overhead
• Effective capacity: Capacity after applicable data reduction
• FlashCore Module generation: Determines media capabilities and system compatibility
• Host connectivity: Fibre Channel, NVMe/FC, iSCSI or NVMe/TCP requirements
• Availability: Local and remote high-availability requirements
• Expansion: Future storage-growth requirements
• Cyber resilience: Snapshot, encryption and recovery requirements
• Replication: Disaster-recovery and multi-site requirements

IBM FlashSystem Frequently Asked Questions

What is IBM FlashSystem?

IBM FlashSystem is IBM's family of enterprise storage systems. FlashSystem combines flash or hybrid storage hardware with IBM Storage Virtualize software to provide storage for databases, virtualization, IBM Power Systems, enterprise applications, backup and other workloads.

What are IBM FlashSystems?

IBM FlashSystems is commonly used when referring collectively to multiple systems within the IBM FlashSystem family. Individual models include IBM FlashSystem 5600, 7600 and 9600 as well as previous FlashSystem 5200, 5300, 7300, 9500 and other systems.

What is an IBM FlashCore Module?

An IBM FlashCore Module is an IBM-developed NVMe flash-storage device used in supported FlashSystem systems. FlashCore Modules combine flash capacity with IBM hardware and firmware technologies designed for high performance, data reduction, encryption and storage resilience.

Does IBM FlashSystem support IBM i?

Yes. Supported IBM FlashSystem systems can provide external SAN storage for IBM Power Systems running IBM i. Compatibility depends on the FlashSystem model, IBM Power System, IBM i release, host adapter and storage configuration.

Does IBM FlashSystem support AIX?

Yes. IBM FlashSystem is commonly used for AIX storage on IBM Power Systems, including database, ERP, SAP, high-availability and general enterprise application workloads.

What is IBM Storage Virtualize?

IBM Storage Virtualize is the storage software used across much of the FlashSystem family. It provides capabilities including storage virtualization, thin provisioning, snapshots, replication, data reduction, encryption, high availability and data migration.

Can older IBM FlashSystem systems be upgraded?

Many existing FlashSystem platforms can be expanded or upgraded using supported drives, FlashCore Modules, expansion enclosures, host adapters, cache and other hardware. Compatibility depends on the exact machine type, model and software level.

Which IBM FlashSystem should I choose?

The appropriate FlashSystem depends on required IOPS, latency, bandwidth, capacity, connectivity, availability, expansion and workload characteristics. A high-volume database may prioritize latency and IOPS, while archive or capacity-oriented storage may place greater emphasis on density and cost per terabyte.
