IBM AHS2 9.6 TB NVMe Flash Core Module FlashSystem

The IBM AHS2 9.6 TB NVMe FCM is a 2.5 Inch Flash Core Module for IBM FlashSystem Control Enclosures, has 01YM583 01YM943 01YM493 01EK232 01YK818 part numbers and can have ADS2 AES2 IBM Feature Numbers. The IBM AHS2 9.6 TB Flash Core Module is only available in refurbished or used condition as of April 11, 2020, includes warranty and eligible for IBM Maintenance and Support agreements. A maximum of 24 IBM AHS2 9.6 TB Flash Core Modules are supported within the following IBM FlashSystem 9100 and 9200 SFF NVMe Control Enclosure models: 9150 9848-AF8, 9150 9846-AF8, 9150 9848-UF8, 9848-AG8, 9848-UG8, 9110 9848-AF7, 9110 9846-AF7, 9110 9848-UF7.

The IBM FlashSystem supports IBM FlashCore Modules, storage-class memory drives, and industry-standard NVMe flash drives, and SED self- encrypting NVMe flash drives of which all can be intermixed. The IBM AHS2 9.6 TB Flash Core Module integrates IBM MicroLatency technology, advanced flash management, and reliability into a small form factor NVMe module, with built-in, performance-neutral hardware compression and encryption. IBM FlashCore Modules are the fastest of the supported drives, and offer AES-XTS 256 encryption and FIPS 140-2 complaint encryption for securing data at rest compliance requirements.

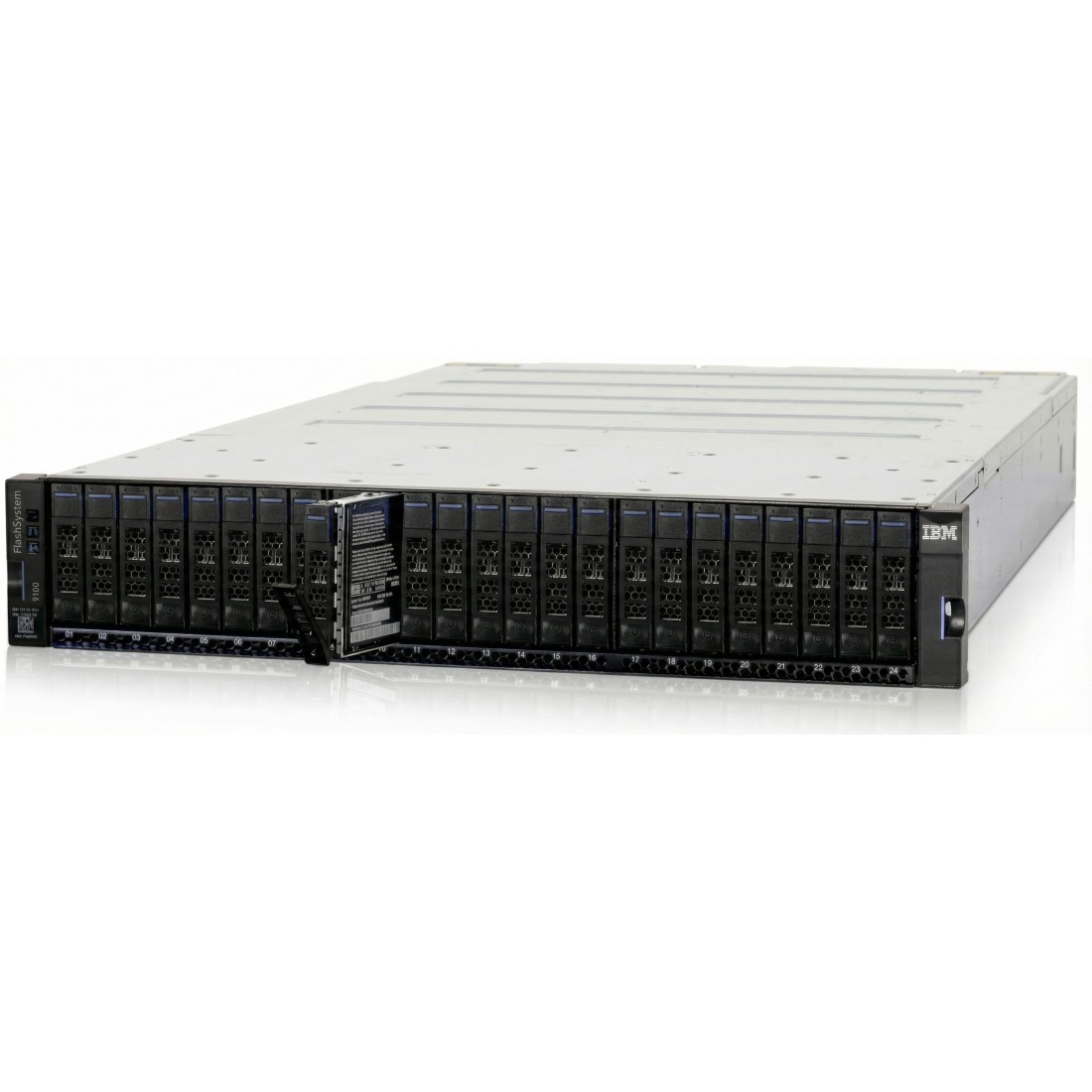

IBM FlashSystem NVMe Control Enclosures has 24 SFF 2.5 slots, supports up to 20 SFF Expansion Enclosures that have twenty-four 2.5-inch SFF slots, providing a maximum of 504 drives per system. Customers may also attach up to 8 LFF Expansion Enclosures that have ninety-two 3.5 Inch LFF slots for a maximum of 760 drives per system. Intermixing of SFF and LFF Expansion Enclosures is supported. Expansion enclosures are designed to be dynamically added with virtually no downtime, helping to quickly and seamlessly respond to growing capacity demands.

A four-way clustered FlashSystem supports a maximum of 3,040 drives, and can be added into existing IBM Storwize V7000 clustered systems. Further scalability can be achieved with virtualization of external storage. An IBM FlashSystem NVMe Control Enclosure is able to virtualize other non-IBM external storage systems, and its capacity is then able to inherit the functional richness and ease of use of the IBM FlashSystem.

IBM FlashSystems are also ideal for improving IBM i backup and recovery times, which can shrink a backup window to only seconds, and often without any downtime. The IBM i Backup SnapShot software utilizes the FlashCopy and SnapShot features inherent to the storage to make almost instant copies of an IBM i source partition without disrupting production and using minimal storage for various use cases, such as: full system backups, feeding a Data Warehouse for SQL or reporting, to create secondary partitions for testing and keep target synchronized with production, creating anonymized partition for compliance requirements and for creating multiple copies of production data to allow quick recovery due to database corruption and security incidents caused by ransomware encryption attacks.

IBM FlashSystem Flash Core Module FCM Options
IBM AHS1 4.8 TB NVMe Flash Core Module 2.5-inch 01YM582 01YM482 01EK223 03LG613 01YK819 ADS1 AES1
IBM AHS2 9.6 TB NVMe Flash Core Module 2.5-inch 01YM583 01YM943 01YM493 01EK232 01YK818 ADS2 AES2
IBM AHS3 19.2 TB NVMe Flash Core Module 2.5-inch 01YM584 01EK231 01YM501 01YK817 ADS3 AES3
IBM AHS5 4.8 TB NVMe FlashCore Module 2.5-inch 02YC416 02YC423 03GU599 02CL186 03GH469 03GH824 ADS5 AES5
IBM AHS6 9.6 TB NVMe FlashCore Module 2.5-inch 02YC417 03GH470 03GU600 02CL184 03GH766 ADS6 AES6
IBM AHS7 19.2 TB NVMe FlashCore Module 2.5-inch 02YC418 02CL182 03GH471 03GH764 03GU533 03GU601 03LG616 ADS7 AES7 03GH471
IBM AHS8 38.4 TB NVMe FlashCore Module 2.5-inch 02YC419 03LG629 03JK705 03JK079 03GH929 AGSD ADSD
For IBM FlashSystem 9100 and 9200 Control Enclosure models: 9150 9848-AF8, 9150 9846-AF8, 9150 9848-UF8, 9848-AG8, 9848-UG8, 9110 9848-AF7, 9110 9846-AF7, 9110 9848-UF7.

IBM NVMe Industry-Standard Drive Options:
IBM AHT1 800GB NVMe Flash Drive 2.5 Inch 01YM585 01YM509 01CM508 ADT1 AET1
IBM AHT2 1.92 TB NVMe Flash Drive 2.5 Inch 01YM586 01CM504 01CM509 01YM517 01YM520 ADT2 AET2
IBM AHT3 3.84 TB NVMe Flash Drive 2.5 Inch 01YM587 01CM510 01YM525 01YM528 ADT3 AET3
IBM AHT4 7.68 TB NVMe Flash Drive 2.5 Inch 01YM588 01YM533 01YM536 ADT4 AET4
IBM AHT5 15.36 TB NVMe Flash Drive 2.5 Inch 01YM589 01YM541 01YM544 ADT5 AET5
For IBM FlashSystem 9100 and 9200 Control Enclosure models: 9150 9848-AF8, 9150 9846-AF8, 9150 9848-UF8, 9848-AG8, 9848-UG8, 9110 9848-AF7, 9110 9846-AF7 and 9110 9848-UF7.

IBM 12 Gb SAS Industry-Standard Drive Options:
IBM AH2A 1.92TB 12 Gb SAS Flash Drive 2.5 Inch 01EJ803 01EJ808 01EJ601 01EJ805
IBM AH2B 3.84TB 12 Gb SAS Flash Drive 2.5 Inch 01EJ961 01EJ966 01EJ602 01EJ963
IBM AH2C 7.68TB 12 Gb SAS Flash Drive 2.5 Inch 01LJ382 01LJ391
IBM AH2D 15.36TB 12 Gb SAS Flash Drive 2.5 Inch 01LJ385 01LJ393
IBM AH2E 30.72 TB 12 Gb SAS Flash Drive 2.5 Inch 02PX474
For IBM FlashSystem 9100 9848-AFF and 9846-AFF SFF Expansion Enclosures with twenty-four 2.5 Inch SFF slots.

IBM 12 Gb SAS industry-standard drive Options:
IBM AH7J 1.92TB 12 Gb SAS Flash Drive 3.5 Inch 01LJ075 01LJ069 01LJ045
IBM AH7K 3.84TB 12 Gb SAS Flash Drive 3.5 Inch 01LJ076 01LJ070
IBM AH7L 7.68TB 12 Gb SAS Flash Drive 3.5 Inch 01LJ077 01LJ071
IBM AH7M 15.36TB 12 Gb SAS Flash Drive 3.5 Inch 01LJ078 01LJ072
IBM AH7N 30.72 TB 12 Gb SAS Flash Drive 3.5 Inch
For IBM FlashSystem 9100 9848-A9F 9846-A9F Expansion Enclosure with ninety-two 3.5 Inch LFF slots.

IBM NVMe Storage-Class Memory SCM Drive Options:
IBM AHTA 375 GB NVMe Storage Class Memory Drive 02PX477 01CM517
IBM AHTB 750 GB NVMe Storage Class Memory Drive 02PX478 02YC460 01CM518
IBM AHTE 800 GB NVMe Storage Class Memory Drive 02PX482
IBM AHTF 1.6 TB NVMe Storage Class Memory Drive 02PX483
For IBM FlashSystem 9100 and 9200 Control Enclosure models: 9150 9848-AF8, 9150 9846-AF8, 9150 9848-UF8, 9848-AG8, 9848-UG8, 9110 9848-AF7, 9110 9846-AF7 and 9110 9848-UF7.

All IBM FlashSystem drives are dual-port and hot-swappable. IBM FlashSystem Drives of the same form factor and connector type can be intermixed within an enclosure. The IBM FlashSystem SFF and LFF HD expansion enclosures can also be intermixed behind the SFF control enclosure.
