IBM ESHS 931GB Mainstream SAS 4k SFF-3 SSD AIX Linux VIOS

IBM 5B2B 01LU902 00LY559 01LU805 01LU829 02YC595 02YC646

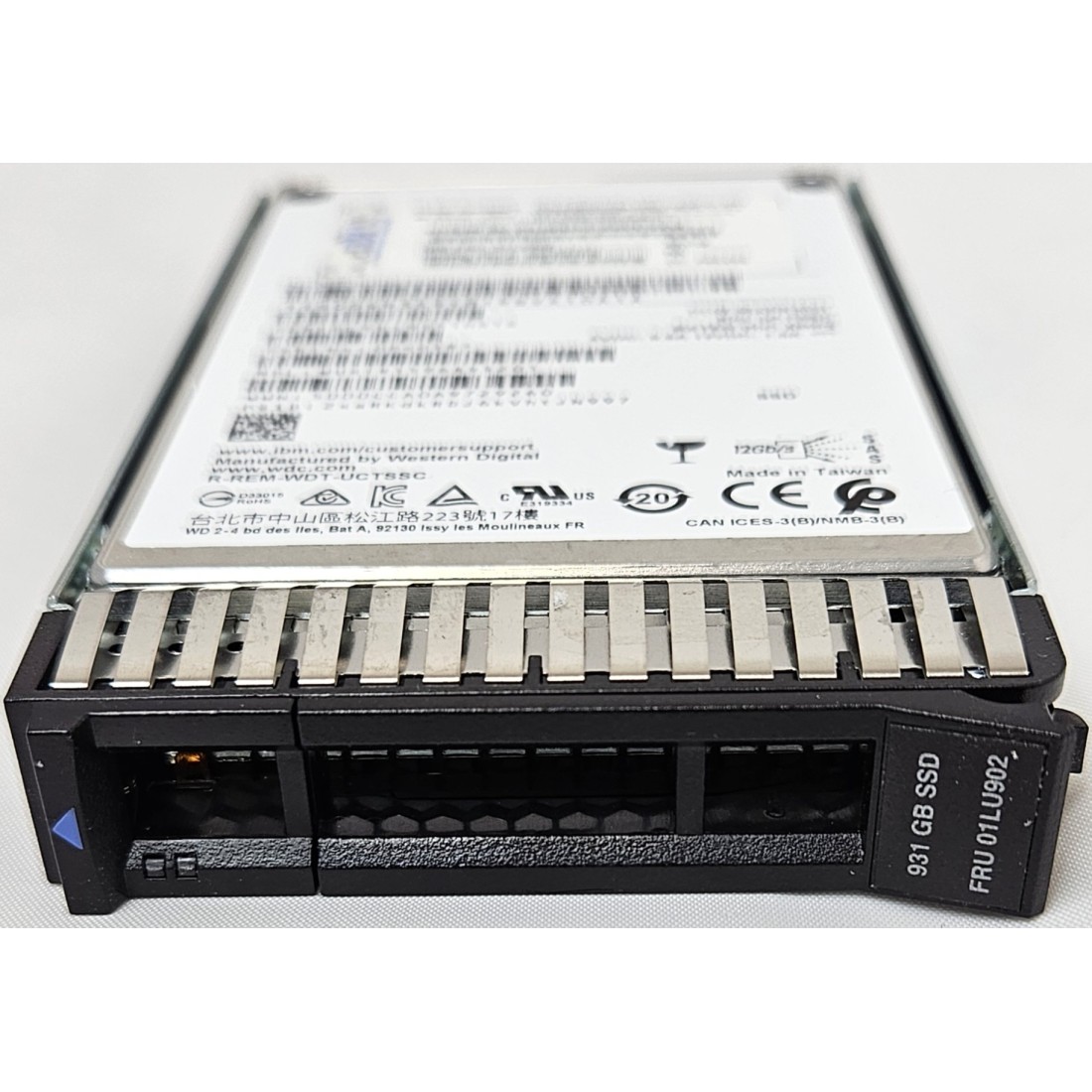

The ESHS is a 931 GB SAS 2.5-inch (SFF) IBM Mainstream SSD for AIX Linux VIOS is formatted formatted in 4k byte sectors and mounted on a 2.5-inch SFF-3 carrier/tray. The ESHS SSD is rated at 6Gb/s and has a 1 DWPD (Drive Write Per Day) rating calculated over a 5 year period. IBM ESHS and ESHT ESJ9 ESJ8 ELHS ES83 ES84 ESKL ESJS solid state drives are physically identical with the same 5B2B CCIN and may have 01LU902 00LY559 01LU805 01LU829 02YC595 02YC646 part number, but use different feature codes to specify how the SSD is used. ESHS indicates usage by AIX, Linux or VIOS and ESHT is for IBM i.



All IBM Power9 and Power8 servers support the new SSD in SAS bays (SFF-3) system units, including: S924 9009 42A, S914 9009-41A, S922 9009-22A, S812L 8247-21L, S814 8286-41A, S824 8286-42A, S812 8284-21A, S822 8284-22A, S822L 8247-22L, S824L 8247-42L, E850 8408-E8E, and E850C 8408-44E. The SFF-3 SAS bay in these servers uses an SFF-3 carrier/tray, on which the SAS drive is mounted. Other model Power8 servers do not have SAS bays in their system units and therefore cannot support Enterprise SFF-3 SSDs. Earlier Power servers do not use the SFF-3 SAS bay. When attached to a Power8 server, the EXP24S or EXP24SX I/O drawers 5887, EL1S, ESLS, or ELLS can hold up to 24 SAS SSDs. The EXP24S and EXP24SX SAS bays use an SFF-2 carrier/tray, on which the SAS drive is mounted. The Power S814 6-core and 8-core, S822, S824, E850, E870, and E880 servers support the features 5887 EXP24S and ESLS EXP24SX. The S812L, S822L, and S824L servers support the features EL1S EXP24S and ELLS EXP24SX.



The ESHS mainstream 931 GB and 1.86 TB, 3.72 TB, and 7.45 TB capacity SSDs are designed to provide a lower cost per terabyte of SSD storage in a space-efficient footprint. A 2.5-inch SAS SSD is mounted on an SFF-3 carrier/tray for a POWER9 or POWER8 system unit or mounted on an SFF-2 for placement in an expansion drawer such as the EXP24SX drawer when attached to a POWER9 or POWER8 server. The drive is formatted to use 4224-byte (4k) sectors and does not support the 4k JBOD 4096-byte sector. It also does not use the 512-byte or 528-byte (5xx) sector formatting.



When placed in POWER9 or POWER8 system units with SAS SFF-3 bays, the drive is run by the integrated SAS controller such as found in IBM Power L922, S914, S922, S924, H922, H924, S812L, S822L, S824L, S814, S812, S822, S824, E850, and E850C servers. When placed in the EXP24SX (SFF-2) storage enclosure, the drive is run by a PCIe3 SAS RAID adapter, such as the feature EJ0L, EJ14, EJ0J, EJ0M, EL3B, or EL59. These PCIe3 controllers support 4k drives on POWER9 or POWER8 servers. Earlier-generation SAS controllers don't support 4k drives.

When placed in an SSD array of one of these PCIe3 controllers, the array must be all mainstream SSDs or all non-mainstream SSDs. A SAS controller can currently run both 4k and 5xx drives, but they must be in separate arrays. Drives in an array should be the same or similar capacity. HDDs and SSDs can only be mixed in the same array when part of an Easy Tier® array (RAID 5TS, RAID 6T2, or RAID 10T2) provided by SAS RAID controllers such as the feature EJ0L or EJ14 or POWER9 or POWER8 integrated backplane controllers.



Like all SSDs, the performance of the 931 GB, 1.86 TB, 3.72 TB, and 7.45 TB mainstream SSDs are excellent compared to a disk drive (HDD). Read performance is on par with higher write endurance SSDs such as the enterprise SSDs. Write performance when compared to enterprise SSDs is somewhat slower but still more than 25 times that of a standard 15K HDD. As with any drive, either HDD or SSD, the number of drives is still a factor in achieving satisfactory performance, especially for IBM i.



These are mainstream drives and are not suitable for write-intensive workloads. Write-intensive workloads are those that write more to the drive each day than its rated capacity. Assuming a typical heavily random workload at about 3394 TB of writes to the drive, it will be at its maximum projected write capability. Writes past the drive's maximum write capacity will continue to work for some period of time, but much more slowly. A Predictive Failure Analysis message will indicate that it is time to replace the drive. If the predictive failure is ignored and writes continue to be sent to the drive, eventually the drive will be unable to accept write commands and will accept only read commands for a period of time. A failed write will result in a more serious error message indicating that the drive must be replaced.



The nature of the workload has a great impact on the maximum write capacity. For example, if a high percentage of more sequentially oriented writes is used instead of random writes, the maximum write capacity can be significantly larger. The user should occasionally check to see what percentage of the drive's write life remains and adjust the workload or drive assignment as it makes sense to do so. Checking is done by inspecting the SSD Mainstream Fuel Gauge. This capability is available through IBM AIX®, IBM i, and Linux®. The query or command to view the information varies by operating system. Check the remaining life of the mainstream drives individually, even if all are in the same array. Depending on the nature of the workload, the lifetime TBW may be somewhat larger.
