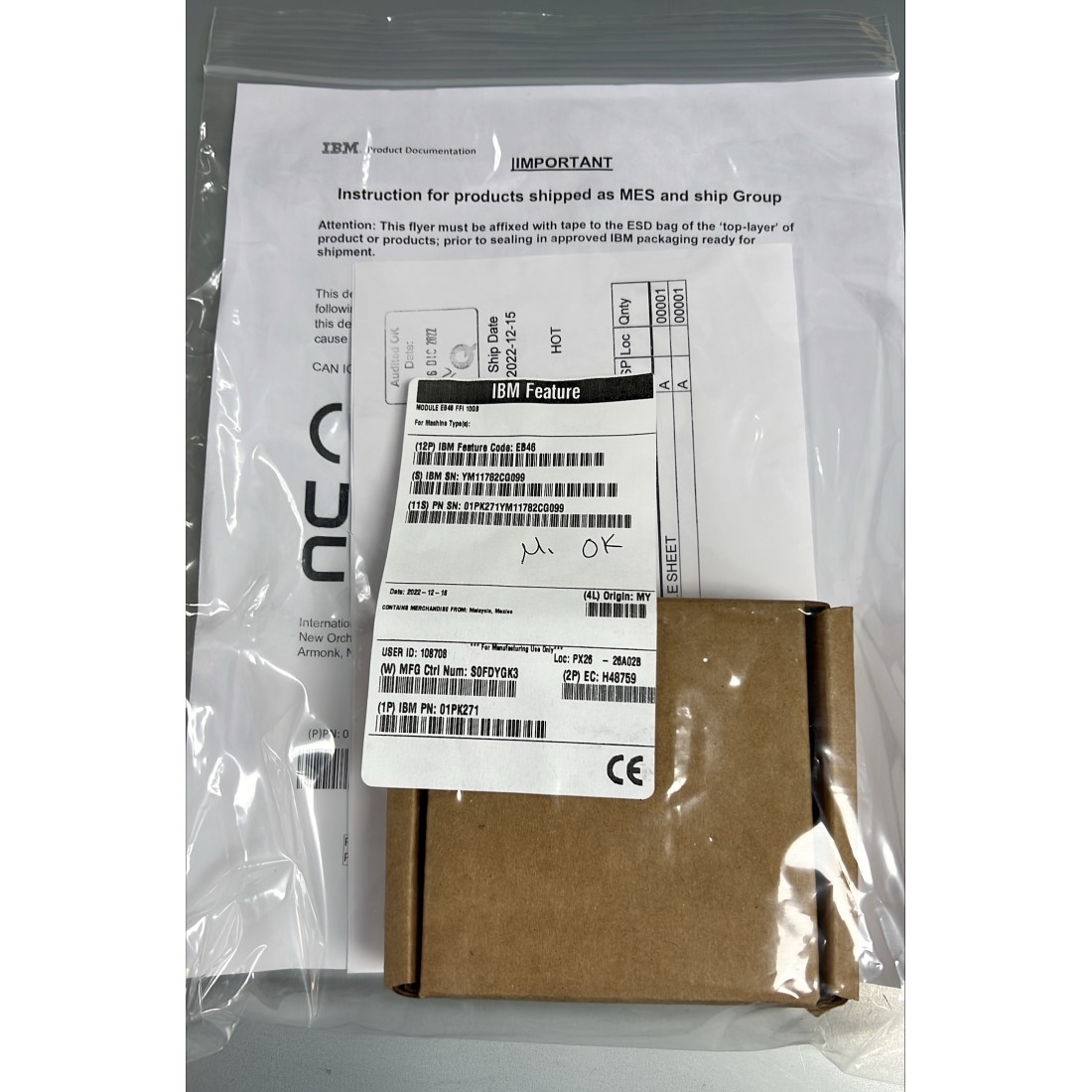

IBM EB46 10 GbE Optical Transceiver SFP+ SR 77P9336 01FT829 01PK271

The IBM EB46 10 GbE SFP+ SR Optical Transceiver has 77P9336 01FT829 and 01PK271 part numbers. IBM qualifies and supports IBM EB46 10 GbE SFP+ SR Optical Transceiver to install into the IBM 10 GbE adapter on AIX and IBM i Power Systems. Customers may use their own optical cabling and SFP+ optical transceiver for the other end. The IBM EB46 10 GbE SFP+ SR Optical Transceiver supports distances up to 300 M using an OM3 cable or 82 m using an OM2 cable. Either of the IBM EB46 10 GbE Optical Transceiver SFP+ SR ports or both ports can be populated.

Other IBM Transceivers for IBM Power Systems include:
IBM EB47 25GbE Optical Transceiver SFP28 has 78P5153 and 03GH278 part numbers.
IBM qualifies and supports IBM EB47 25GbE SFP28 Optical Transceiver to install into IBM 25 GbE adapters on AIX and IBM i Power Systems. Customers may use their own optical cabling and SFP28 optical transceiver for the other end. The IBM EB47 25GbE SFP28 Optical Transceiver supports distances up to 100 m using an OM4 cable or 70 M using an OM3 cable. Either of the IBM EB47 25GbE SFP28 Optical Transceiver ports or both ports can be populated.

The IBM EB48 1 Gb RJ45 1000BASE-T transceiver has 03FP283 part number. IBM qualifies and supports installing the IBM EB48 1 Gb RJ45 1000BASE-T transceiver into the RJ45 adapter. Customers may use their own Cat 5e STP cable. The IBM EB48 1 Gb RJ45 1000BASE-T transceiver supports distances up to 100 m using a Cat 5e STP cable. Either of the RJ45 adapter’s ports can be populated, as well as both ports, but mixing different speeds between the ports is not supported.

Use transceiver multimode fiber optic cables with shortwave lasers that adhere to the following specifications:
OM3 10 Gb/s Fiber Optic Cable, supports distances from 1.64 ft to 984.25 ft, is Multimode 50/125 micron fiber, and provides 2000 MHz x km bandwidth
OM2 10 Gb/s Fiber Optic Cable, supports distances from 1.64 ft to 269.02 ft, is Multimode 50/125 micron fiber, and provides 500 MHz x km bandwidth
OM1 10 Gb/s Fiber Optic Cable, supports distances from 1.64 ft to 108.26 ft, is Multimode 62.5/125 micron fiber, and provides 200 MHz x km bandwidth

NOTE: Due to the different core sizes, OM1 cables can only be connected to other OM1 cables. For best results, OM2 cables should not be connected to OM3 or OM4 cables. If an OM2 cable is connected to an OM3 or OM4 cable, the characteristics of the OM2 cable apply to the entire length of the cables.
