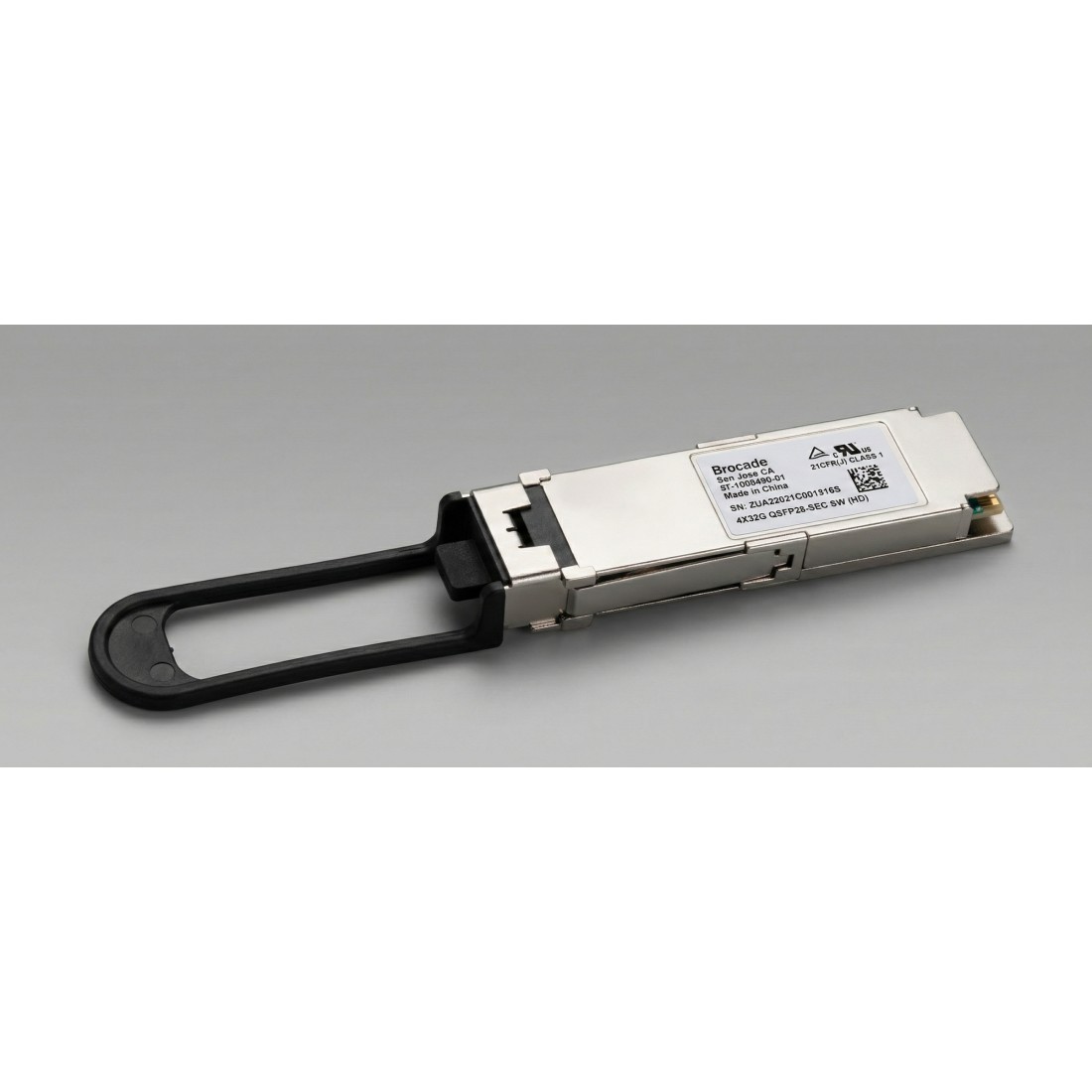

57-1000490-01 XBR-000275 XBR-000475 Brocade 4x32G FC QSFP+ SWL Optical Transceiver

The 57-1000490-01 Brocade 4x32G FC QSFP+ SWL is a Short Wavelength, Quad Small Form-Factor Pluggable fiber optic transceiver that has XBR-000425 XBR-000475 part numbers. The Brocade 57-1000490-01 Brocade 4x32G FC QSFP+ SWL modules are hot-swappable, 3.3V low-voltage digital diagnostic optical transceivers that support high-speed serial links over multimode optical fiber at signaling rates up to 4×28.05Gb/s. The Brocade 57-1000490-01 4x32G FC QSFP+ SWL optical transceiver supports 32Gb/s and 16Gb/s inter-switch links ISLs, inter-chassis links ICLs, and device connectivity. The Brocade 57-1000490-01complies with the 128GFC Fiber Channel standard FC-PI-6P and QSFP MSA mechanical specification SFF-8661.

Read the Brocade 57-1000490-01 data sheet for product details and specifications from the manufacture. View other SFP Optical Transceivers.

57-1000490-01 Brocade 4x32Gb/s SWL QSFP+ Capabilities and Specifications
Fiber Channel Performance
112.2Gb/s 4×28.05Gb/s line speed, full duplex
56.1Gb/s 4x14.025Gb/s line speed, full duplex

Media: Hot-pluggable, industry-standard QSFP28, MPO 1×12 ribbon cable connector, Short Wavelength SWL

Transmit Tx:
Wavelength: 840 nm to 860 nm
Spectral width: 0.60 nm
Average power: –8.5 dBm to +2.4 dBm per channel
Optical return loss: –12 dB max
OMA: −6.5 dBm to +3.0 dBm per channel

Receive Rx:
Wavelength: 840 nm to 860 nm
Average power: −10.4 dBm to 2.4 dBm per channel
Optical return loss: −12 dB min
SRS OMA: –4.7 dBm max per channel
100m on OM4, OM4+, and OM5 multimode fiber; 70m on OM3 multimode fiber. These distances assume 1.0-dBm connector loss.

Size
Width: .72 in. (18.35 mm)
Height: .51 in. (12.9 mm)
Depth: 2.82 in. (71.00 mm)

Storage Temperature : –40°C to 85°C –40°F to 185°F

Power Dissipation: 2.5W

Regulatory and Standards Compliance
North America UL/CSA 60950, CDRH Class 1
European Union EN 60950, EN 60825 Class 1

57-1000490-01 Brocade Product Highlights
850-nm multimode VCSEL transmitter
Diagnostic features per SFF-8472 Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of Transmitted optical power, Received optical power, Laser bias current, Temperature and Supply voltage.
Industry-standard MPO 1×12 ribbon cable connector
Distance: 100m link length on OM4, OM4+, and OM5 fiber; 70m link length on OM3 fiber these distances assume 1.0-dBm connector loss
Support for breakout to 4x32Gb/s SWL connectivity
IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe
Compliance with the Restriction on Hazardous Substances RoHS directive
