57-1000333-01 XBR-000212 XBR-000213 Brocade 32Gb SWL SFP+ Optical Transceiver

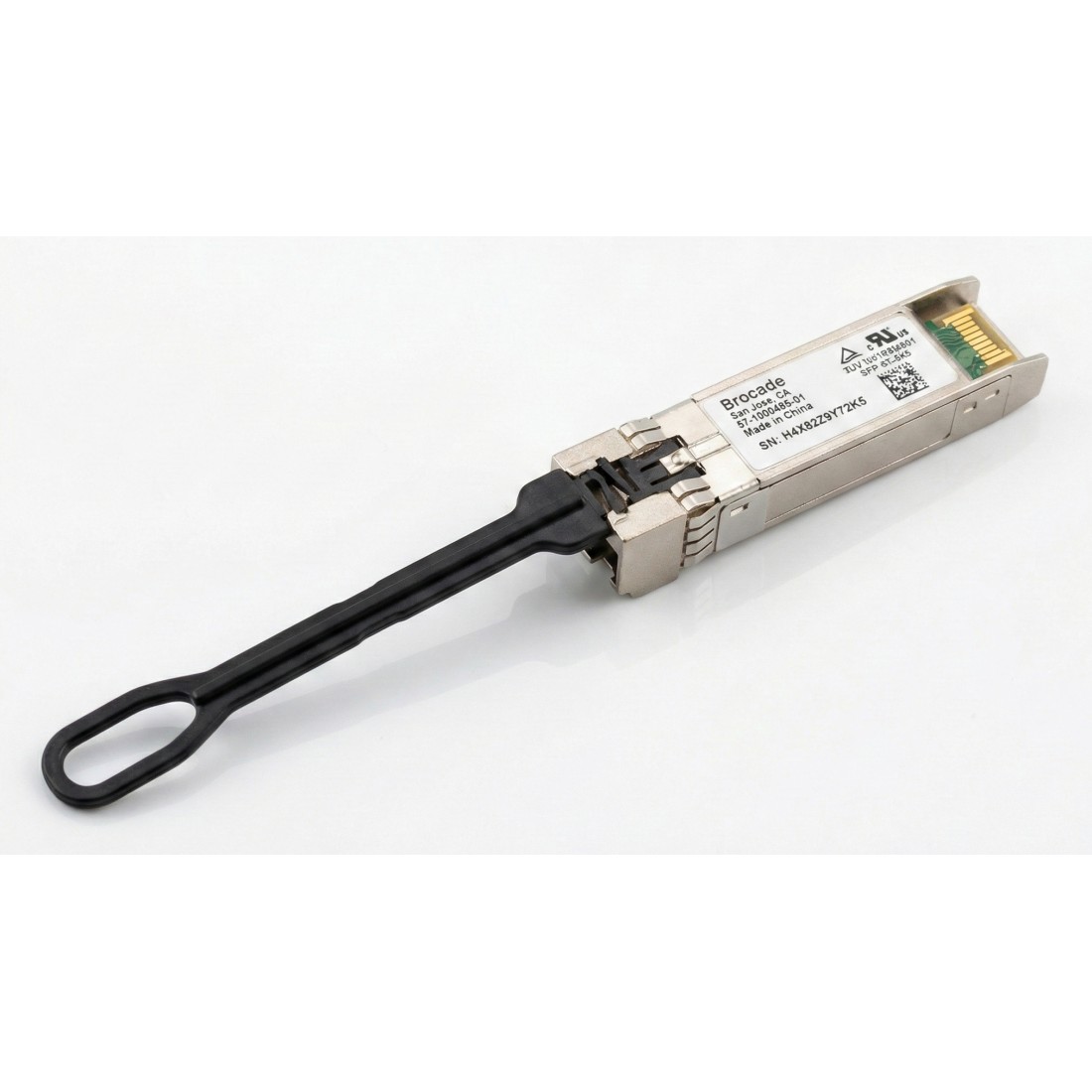

The Brocade 57-1000333-01 32Gb/s SWL SFP+ Optical Transceiver modules are hot-swappable, low-voltage 3.3V digital diagnostic optical transceivers that support high-speed serial links over multimode optical fiber at signaling rates up to 28.05 Gb/s. The 57-1000117-01 Brocade 32Gb/s SWL SFP+ Optical Transceiver has XBR-000212 XBR-000213 XBR-000412 XBR-000413 part numbers.

Read the Brocade 57-1000333-01 data sheet for product details and specifications from the manufacture. View other SFP Optical Transceivers.

The Brocade 57-1000333-01 32Gb/s SWL SFP+ Optical Transceiver provides high system reliability through rigorous qualification and certification processes, and leverages unique design parameters to provide the highest performance with Brocade’s industry-leading switches and directors. The Brocade 57-1000333-01 32Gb/s SWL SFP+ Optical Transceiver helps eliminate issues related to SFP incompatibility, reducing downtime and support costs. The Brocade 57-1000333-01 32Gb/s SWL SFP+ Optical Transceiver also helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility for connecting servers, storage, and switches within 32Gb/s Fiber Channel fabrics.

The Brocade 57-1000333-01 32Gb/s SWL SFP+ Optical Transceiver complies with SFP+ mechanical SFF-8402, optical, and electrical specifications FC-PI-6 for LC duplex transceivers. The Brocade 32Gb/s SWL SFP+ is a multi-rated 850-nm SFP that complies with 28.05 Gb/s, 14.025 Gb/s and 8.5 Gb/s Fiber Channel specifications. The 57-1000117-01 Brocade 32Gb/s SWL SFP+ Optical Transceiver has an 850-nm multimode VCSEL transmitter and FC-PI-6 compliance for 28.05 Gb/s,14.025 Gb/s and 8.5 Gb/s operations.

Regulatory and Standards Compliance
North America: UL/CSA 60950, CDRH Class 1
European Union: EN 60950, EN 60825 Class 1

57-1000117-01 Brocade Capabilities and Specifications
Performance: Fiber Channel: 8.5 Gb/s, 14.025 Gb/s and 28.05 Gb/s line speed, full duplex; auto-sensing of 8 Gb/s, 14 Gb/s, and 28 Gb/s port speeds

Media: Hot-pluggable, industry-standard Small Form-Factor Pluggable SFP+, LC connector; Short Wavelength SWL

Operating Distances
OM5 50 μm 3500 MHz×km
- 8 Gb/s Fiber Channel: Distance: .5m to 190m
- 16 Gb/s Fiber Channel: Distance: .5m to 125m
- 32 Gb/s Fiber Channel: Distance: .5m to 100m
OM4 50 µm 3500 MHz×km
- 8 Gb/s Fiber Channel: Distance: .5m to 190m
- 16 Gb/s Fiber Channel: Distance: .5m to 125m
- 32 Gb/s Fiber Channel: Distance: .5m to 100m
OM3 50 µm 1500 MHz×km
- 8 Gb/s Fiber Channel: Distance: .5m to 150m
- 16 Gb/s Fiber Channel: Distance: .5m to 100m
- 32 Gb/s Fiber Channel: Distance: .5m to 70m
OM2 50 µm 500 MHz×km
- 8 Gb/s Fiber Channel: Distance: .5m to 50m
- 16 Gb/s Fiber Channel: Distance: .5m to 35m
- 32 Gb/s Fiber Channel: Distance: .5m to 20m

Transmit Tx:
Wavelength: 840 nm to 860 nm
Spectral width: 0.57 nm
Average power: −6.7 dBm to 1.6 dBm
RIN: −129 dB/Hz max
OMA: 479 µW min

Receive Rx:
Wavelength: 770 nm to 860 nm
Average power: 2 dBm max
Optical return loss: 12 dB min
Unstressed sensitivity: 95 µW, −10.2 dBm
SRS OMA: 263 µW
3 dB cutoff maximum: 18 GHz

Size
Width: .58 inches (14.80 mm)
Height: .48 inches (12.21 mm)
Depth: 2.23 inches (56.70 mm)

Storage Temperature: −40°F to 185°F (−40°C to 85°C)

Power Dissipation: 1.0W

Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:
- Transmitted optical power
- Received optical power
- Laser bias current
- Temperature
- Supply voltage

Industry-standard LC duplex connector
100m link lengths at 28.05 Gb/s on OM4 fiber
IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe
RoHS compliant
