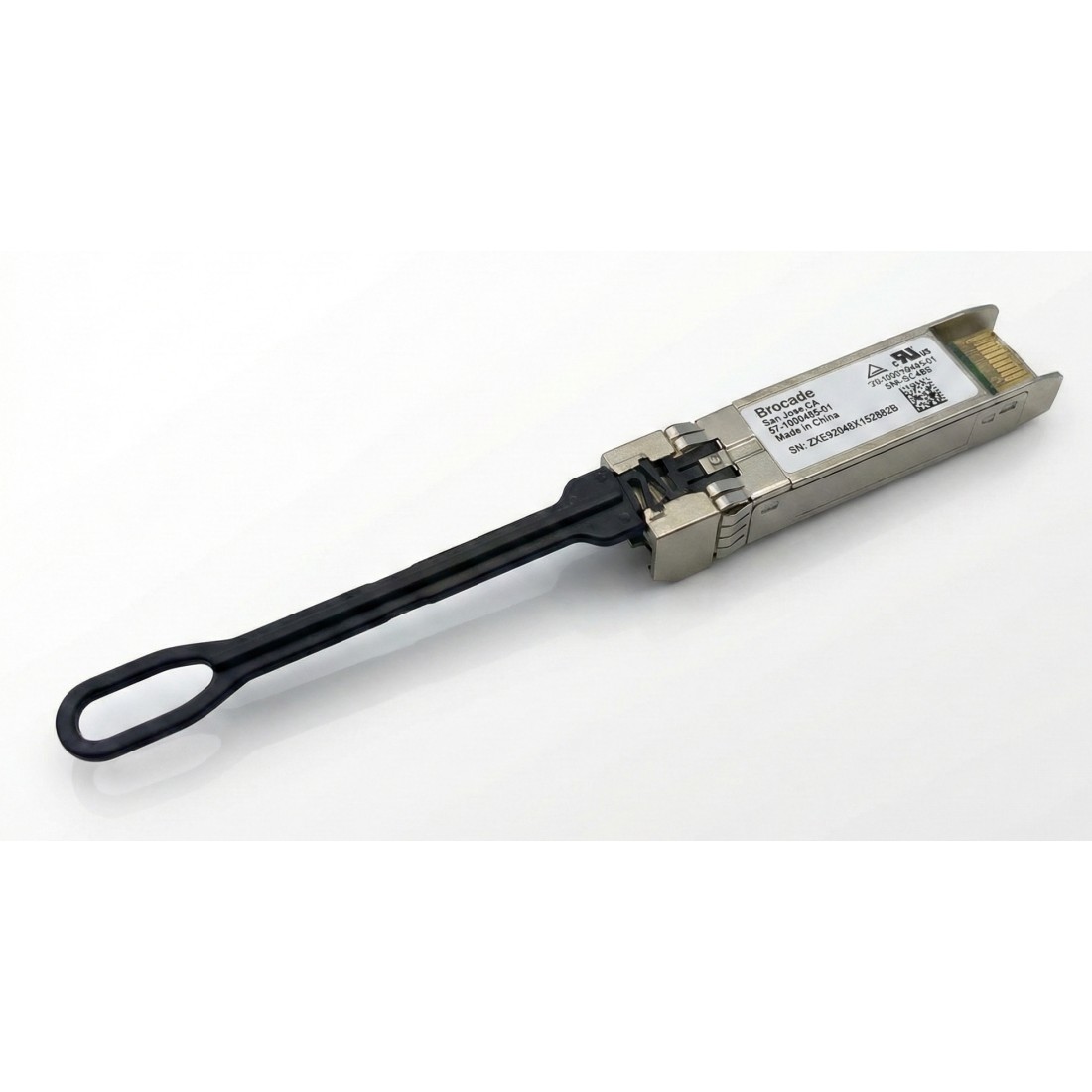

57-1000485-01 XBR-000412 XBR-000413 Brocade 32Gb SWL SFP+ Fiber Channel Transceiver

The 57-1000485-01 Brocade 32Gb SWL SFP+ Fiber Channel Transceiver modules are hot-swappable, 3.3V low-voltage digital diagnostic optical transceivers that support high-speed serial links over multimode optical fiber at signaling rates up to 28.05Gb/s. The 57-1000485-01 Brocade 32Gb SWL SFP+ Fiber Channel Transceiver has XBR-000412 XBR-000413 part numbers, and complies with SFP+ mechanical SFF-8402, optical, and electrical specifications FC-PI-6 for LC duplex transceivers. The 57-1000485-01 Brocade 32Gb SWL SFP+ Fiber Channel Transceiver is a multi-rated 850-nm SFP that complies with 28.05 Gb/s, 14.025 Gb/s, 8.5 Gb/s Fiber Channel specifications.

Read the Brocade 57-1000485-01 data sheet for product details and specifications from the manufacture. View other SFP Optical Transceivers.

57-1000485 Brocade 32Gb/s SWL SFP+ Capabilities and Specifications
Distances
OM5 50 μm 3500 MHz×km:
- 8Gb/s Fiber Channel: Distance: 0.5m to 190m
- 16Gb/s Fiber Channel: Distance: 0.5m to 125m
- 32Gb/s Fiber Channel: Distance: 0.5m to 100m
OM4 50 µm 3500 MHz×km:
- 8Gb/s Fiber Channel: Distance: 0.5m to 190m
- 16Gb/s Fiber Channel: Distance: 0.5m to 125m
- 32Gb/s Fiber Channel: Distance: 0.5m to 100m
OM3 50 µm 1500 MHz×km:
- 8Gb/s Fiber Channel: Distance: 0.5m to 150m
- 16Gb/s Fiber Channel: Distance: 0.5m to 100m
- 32Gb/s Fiber Channel: Distance: 0.5m to 70m
OM2 50 µm 500 MHz×km:
- 8Gb/s Fiber Channel: Distance: 0.5m to 50m
- 16Gb/s Fiber Channel: Distance: 0.5m to 35m
- 32Gb/s Fiber Channel: Distance: 0.5m to 20m

Performance: Fiber Channel: 8.5 Gb/s, 14.025 Gb/s and 28.05 Gb/s line speed, full duplex; auto-sensing of 8 Gb/s, 14 Gb/s and 28 Gb/s port speeds

Media: Hot-pluggable, industry-standard Small Form-Factor Pluggable SFP+, LC connector; Short Wavelength SWL

Transmit Tx:
Wavelength: 840 nm to 860 nm
Spectral width: 0.57 nm
Average power: −6.7 dBm to 1.6 dBm
RIN: −129 dB/Hz max
OMA: 479 µW min

Receive Rx:
Wavelength: 770 nm to 860 nm
Average power: 2 dBm max
Optical return loss: 12 dB min
Unstressed sensitivity: 95 µW, −10.2 dBm
SRS OMA: 263 µW
3 dB cutoff maximum: 18 GHz

Size
Width: .58 inches 14.80 mm
Height: .48 inches 12.21 mm
Depth: 2.23 inches 56.70 mm

Environmental Storage Temperature: −40°C to 85°C −40°F to 185°F

Power Dissipation: 1W

Brocade 57-1000485-01 highlights
850-nm multimode VCSEL transmitter
FC-PI-6 compliance for
28.05/14.025/8.5Gb/s operation
Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:
- Transmitted optical power
- Received optical power
- Laser bias current
- Temperature
- Supply voltage
Industry-standard LC duplex connector
100m link lengths at 28.05Gb/s on OM4 fiber
IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe
RoHS compliant

Regulatory and Standards Compliance
North America: UL/CSA 60950, CDRH Class 1
European Union: EN 60950, EN 60825 Class 1
