57-1000117-01 XBR-000163 XBR-000164 Brocade 8Gb SWL SFP Optical Transceiver

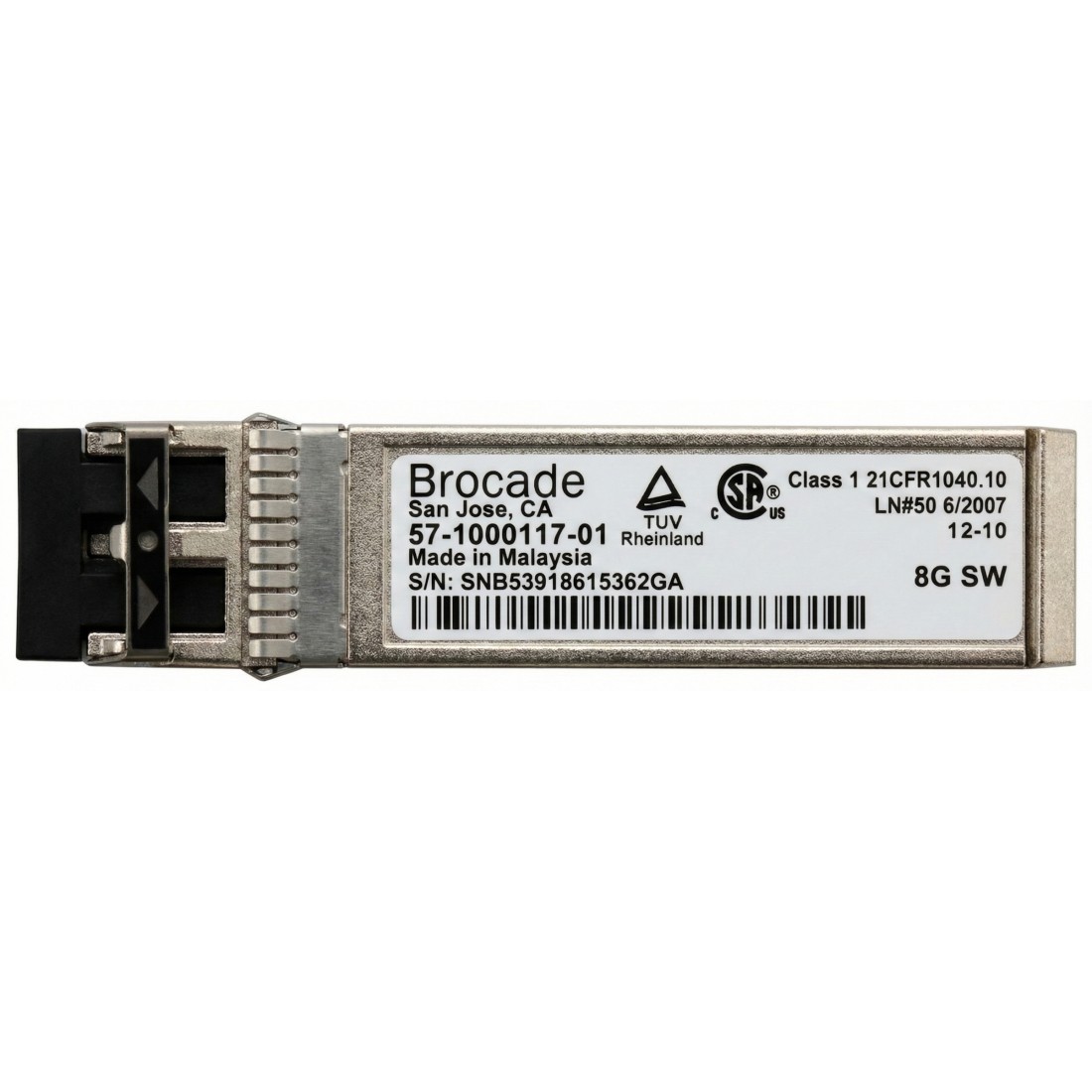

The Brocade 57-1000117-01 is an 8 Gb/s SWL SFP Optical Transceiver, has XBR-000163 and XBR-000164 order numbers, is a certified and optimized optical transceiver for high performance data center fabrics. The Brocade 57-1000117-01 8 Gb/s SWL SFP Optical Transceivers are hot-swappable, low-voltage 3.3 V digital diagnostic optical transceivers that support high-speed serial links over multimode optical fiber at signaling rates up to 8.5 Gb/s. The Brocade 57-1000117-01 complies with SFP+ mechanical SFF-8432, optical, and electrical specifications FC-PI-4 for LC duplex transceivers. The Brocade 57-1000117-01 8 Gb/s SWL SFP Optical Transceiver is a multi-rated 850 nm SFP that complies with 8.5 Gb/s, 4.25 Gb/s and 2.125 Gb/s Fiber Channel specifications.

Read the Brocade 57-1000117-01 data sheet for product details and specifications from the manufacture. View other SFP Optical Transceivers.

57-1000117-01 Brocade 8 Gb/s SWL Optical Transceiver Capabilities and Specifications
Performance: Fiber Channel: 2.125 Gb/s, 4.250 Gb/s, and 8.5 Gb/s line speed, full duplex; auto-sensing of 2, 4, and 8 Gbit/sec port speeds

Media: Hot-pluggable, industry-standard Small Form-Factor Pluggable SFP+, LC connector; Short Wavelength SWL

Operating distances
OM3 50 μm 1500 MHz*km
- 2 Gb/s Fiber Channel: .5 to 500 m (3.31 dB loss)
- 4 Gb/s Fiber Channel: .5 to 380 m (2.88 dB loss)
- 8 Gb/s Fiber Channel: .5 to 150 m (2.04 dB loss)
OM2 50 μm 500 MHz*km
- 2 Gb/s Fiber Channel: .5 to 300 m (2.62 dB loss)
- 4 Gb/s Fiber Channel: .5 to 150 m (2.06 dB loss)
- 8 Gb/s Fiber Channel: .5 to 50 m (1.68 dB loss)
OM1 62.5 μm 200-500 MHz*km
- 2 Gb/s Fiber Channel: .5 to 150 m (2.10 dB loss)
- 4 Gb/s Fiber Channel: 5 to 70 m (1.78 dB loss)
- 8 Gb/s Fiber Channel: .5 to 21 m (1.58 dB loss)

Transmit Tx:
Wavelength: 840 to 860 nm
Spectral width: 0.65 nm
Average power: -8 dBm
RIN: -128 dB/Hz max
Optical return loss: -12 dB minimum
OMA: 302 μW, -5.2 dBm

Receive Rx:
Wavelength: 770 to 860 nm
Average power: 0 dBm
Optical return loss: -12 dB
Unstressed sensitivity: 76 μW, -11.2 dBm
SRS OMA: 148 μW, -8.3 dBm
3 dB cutoff maximum: 12 GHz

Size
Width: .55 inches (14 mm)
Height: .49 inches (912.4 mm)
Depth: 2.26 inches (57.5 mm)

Storage temperature: -40°C to 85°C −40°F to 185°F

Power dissipation: 0.8 W

Regulatory and Standards Compliance
North America: UL/CSA 60950, CDRH Class 1
European Union: EN 60950, EN 60825 Class 1

The Brocade 57-1000117-01 provides high system reliability through rigorous qualification and certification processes and leverages unique design parameters to provide the highest performance with Brocade’s industry leading switch, director, and backbone platforms. The Brocade 57-1000117-01 8 Gb/s SWL SFP Optical Transceiver helps eliminate issues related to SFP incompatibility, reducing downtime and support costs, as well as helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility. The Brocade 57-1000117-01 8 Gb/s SWL SFP Optical Transceiver optimizes connectivity with Brocade platforms to enable maximum cable distance.

57-1000117-01 Product highlights
850 nm multimode VCSEL transmitter
FC-PI-4 compliance for 8.5/4.25/2.125 Gb/s operation
Diagnostic features per SFF-8472 Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of:
- Transmitted optical power
- Received optical power
- Laser bias current
- Temperature
- Supply voltage
Industry-standard LC duplex connector
150 m link lengths at 8.5 Gb/s on OM3 fiber
IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe
Compliance with Restriction on Hazardous Substances RoHS directive
