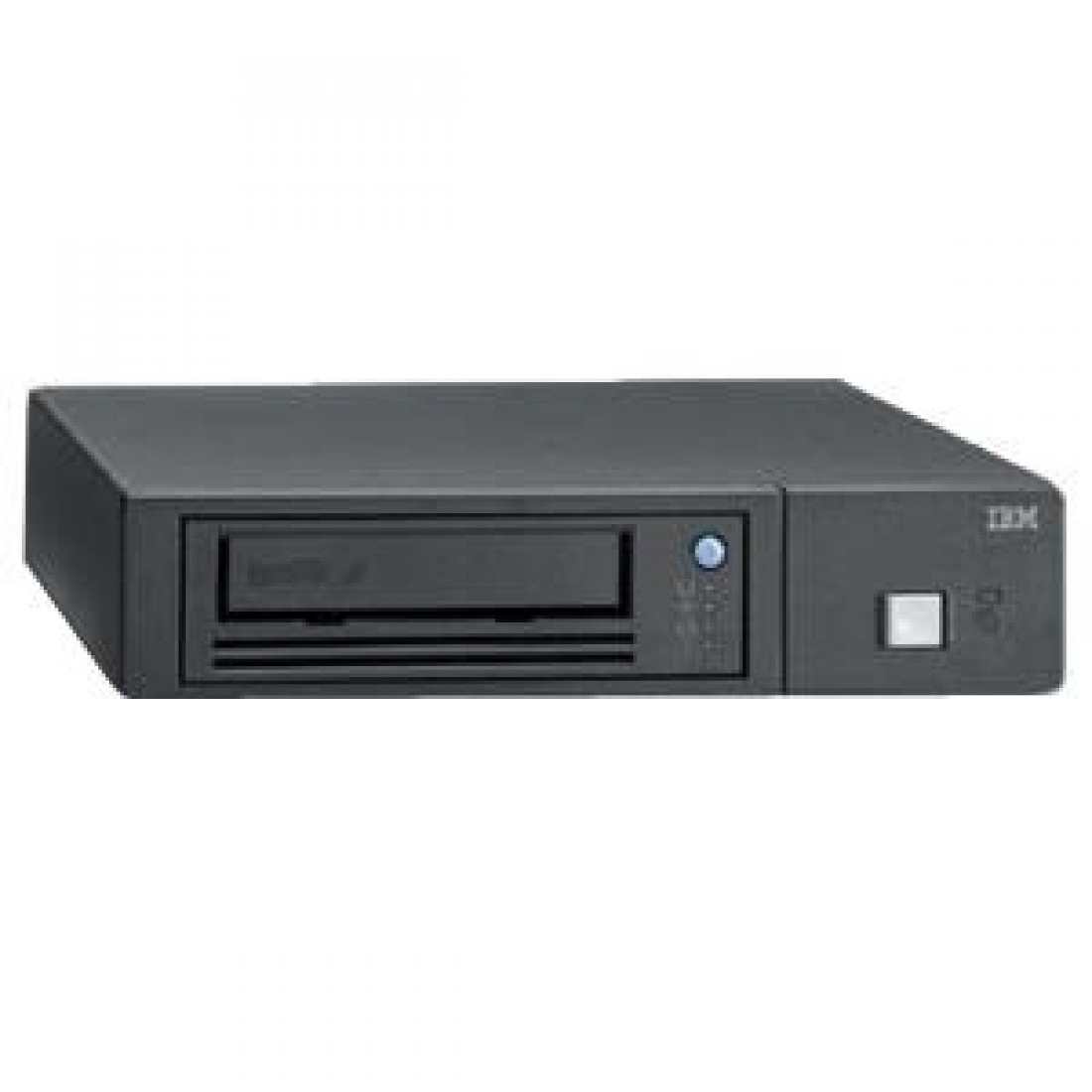

IBM TS2230 3580-H3S LTO3 External SAS Half-High Tape Drive

IBM TS2230 Model 3580-H3S incorporates the LTO3 Ultrium 3 serial-attached SCSI SAS Half-High Tape Drive. 2U height form factor for drive and enclosure. The maximum tape drive throughput data rate performance is up to 60 MB/sec native data transfer rate. The Model H3S will attach to selected IBM System i, x and PC servers that support Microsoft Windows and Linux systems. The IBM 3580 Model H3S comes with a single port SAS attachment, for connection to a wide spectrum of open system servers.

Please specify SAS connector type when ordering:
Feature 5402 - 2.0 m SAS/Mini-SAS 1x Cable
Feature 5406 - 5.5 m SAS/Mini-SAS 1x Cable
Feature 5502 - 2.0 m Mini-SAS/Mini-SAS 1x Cable
Feature 5506 - 5.5 m Mini-SAS/Mini-SAS 1x Cable
Feature 7003 - Rack Mount Shelf Kit

The IBM TS2230 Tape Drive Model 3580-H3L is supported on the following operating systems, at the minimum levels indicated:

OS/400 V6R1 or later
i5/OS V6R1 or later
32-bit Microsoft Windows 2003 (build 3790, or later)
Novell SUSE Linux Enterprise Server 10 (SLES 10) on Intel 32-bit servers

Weight and Dimensions
Width: 9.85 in.
Depth: 10.8 in.
Height: 2.36 in.
Maximum weight: 9.9 lbs.
