IBM 58FB PCIe3 2-port 25 10 Gb NIC & RoCE SFP28 Adapter 01FT752 01FT753 01FT754 01FT756 EC2T EC2U

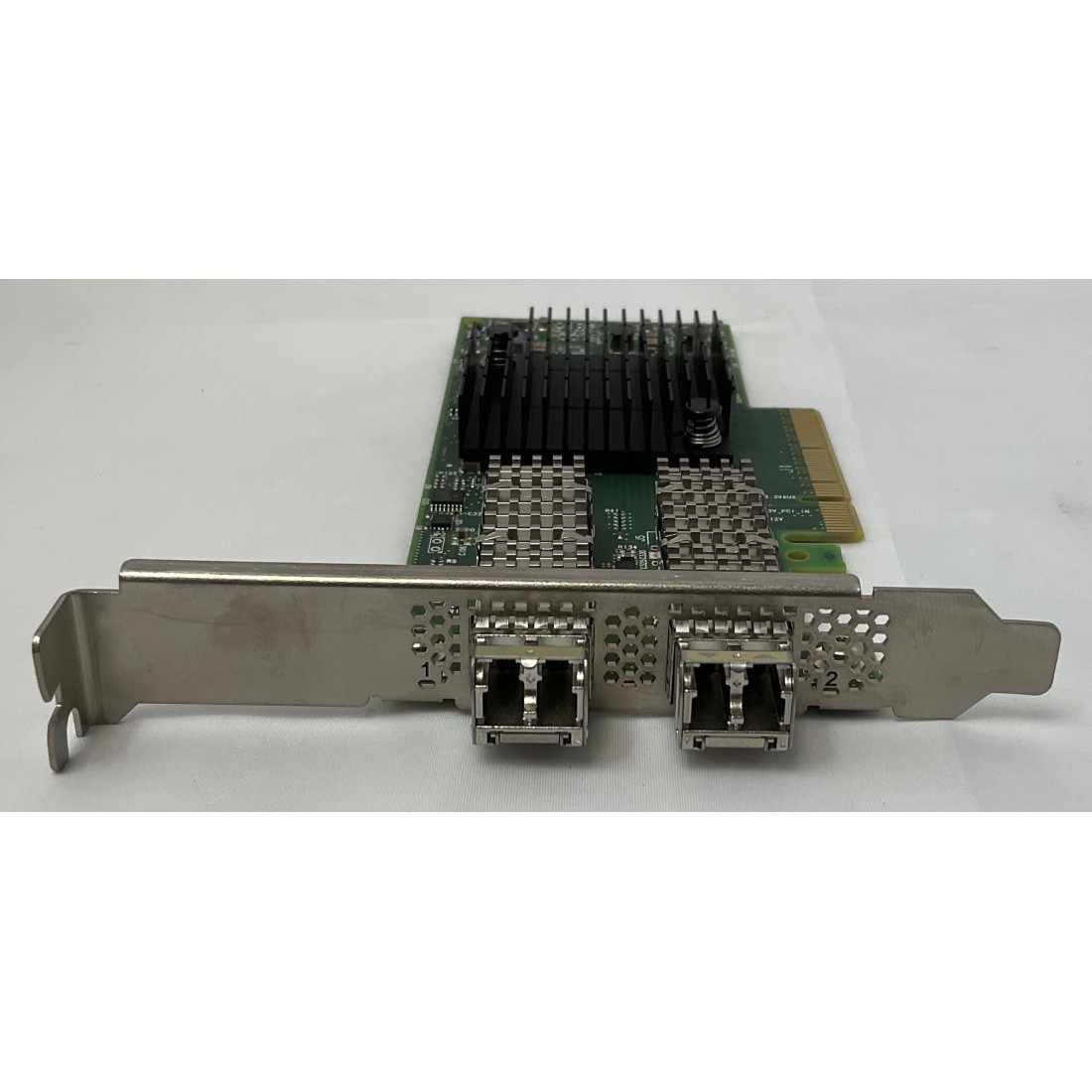

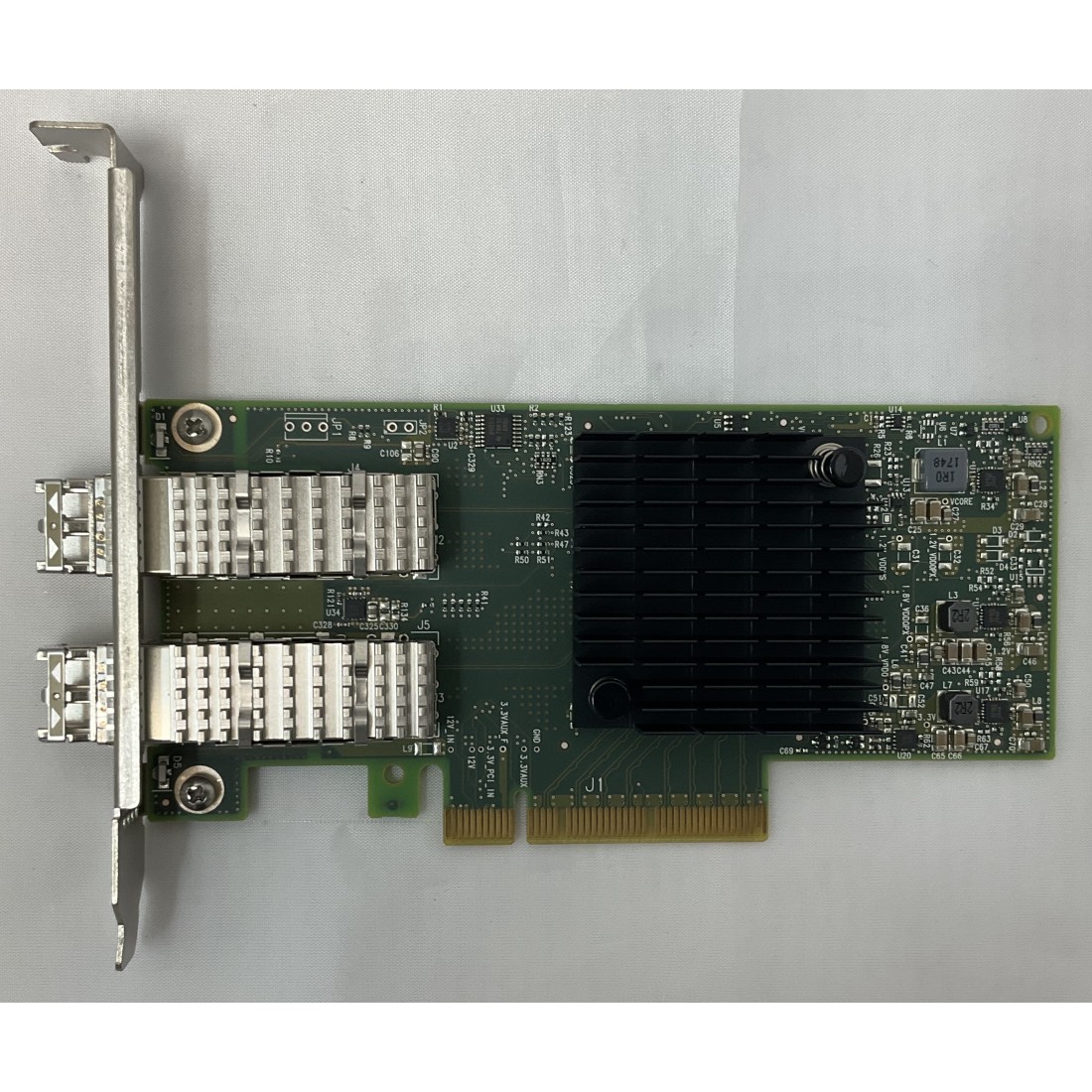

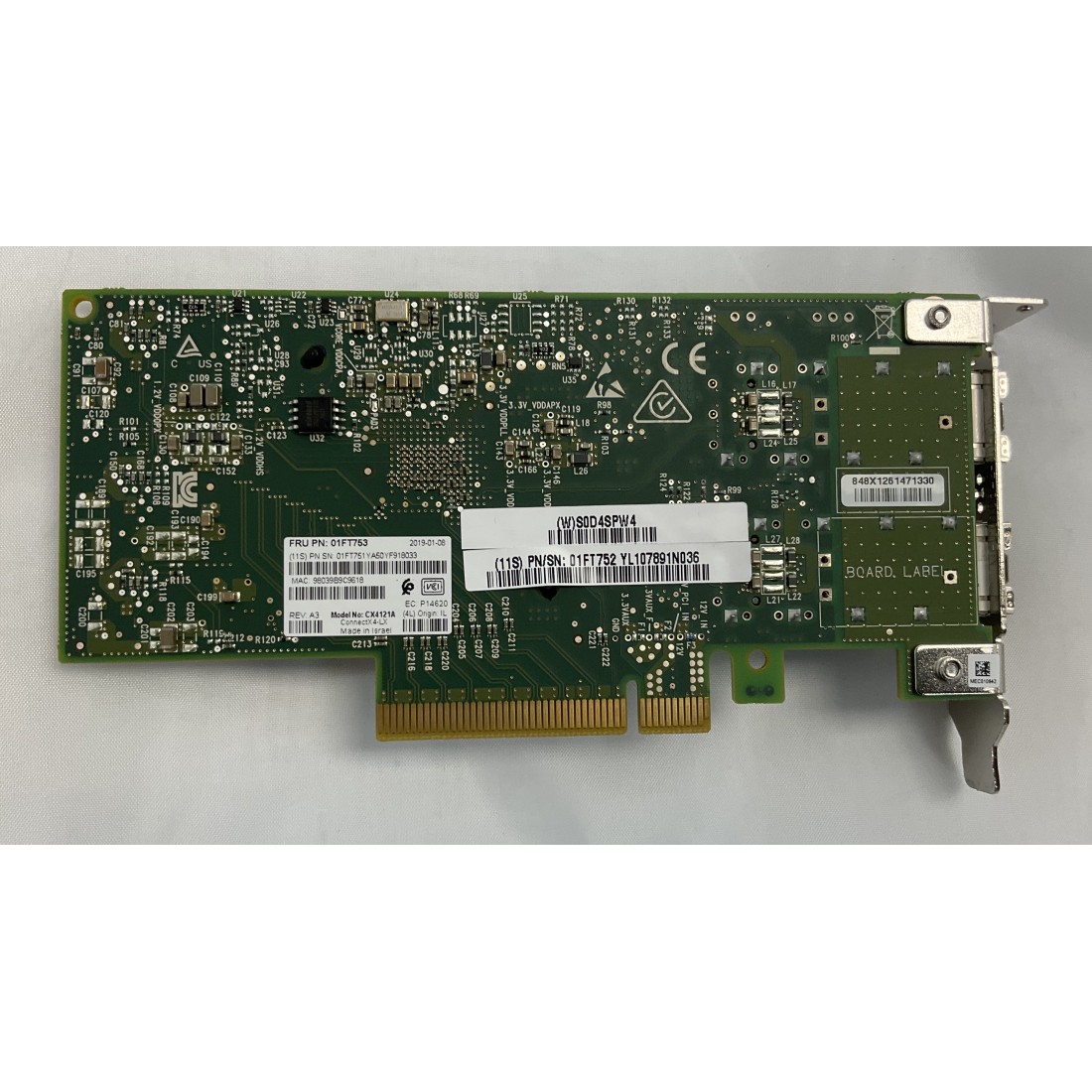

The IBM 58FB PCIe3 2-port 25/10 Gb NIC & RoCE SFP28 Adapter is a PCI Express PCIe 3rd generation Gen3 x8 adapter. The IBM 58FB PCIe3 2-port 25/10 Gb NIC & RoCE SFP28 Adapter has 01FT752 01FT753 01FT754 01FT756 part numbers and IBM EC2T EC2U feature codes. The IBM EC2T PCIe3 2-port 25/10 Gb NIC & RoCE SFP28 Adapter is the low-profile adapter and the IBM EC2U PCIe3 2-port 25/10 Gb NIC & RoCE SFP28 Adapter full-height adapter. The IBM 58FB PCIe3 2-port 25/10 Gb NIC & RoCE SFP28 Adapter provides two 25 Gb SFP28 ports and supports the Ethernet network interface controller NIC and RDMA over Converged Ethernet (RoCE) functions. The IBM 58FB PCIe3 2-port 25/10 Gb NIC & RoCE SFP28 Adapter delivers significantly greater bandwidth with low latency when using RoCE. The IBM 58FB PCIe3 2-port 25/10 Gb NIC & RoCE SFP28 Adapter also minimizes CPU overhead on the IBM Power System by more efficiently using memory access, and offloads the CPU from I/O networking tasks, improving performance and scalability.

IBM 58FB PCIe3 2-port 25/10 Gb NIC & RoCE SFP28 Adapter provides a IBM Power System with the following attributes:

25GbE Cables: IBM offers SFP28 Passive Copper 25Gb Ethernet cables up to 2m. SFP28 based transceivers are included on each end of these cables. Ask us for IBM EB4J, EB4K, EB4L, and EB4M features for a 0.5M, 1.0M, 1.5M and 2.0M copper cable.

10GbE Cables: IBM offers Direct Attach DAC cables up to 5m. SFP-based transceivers are included on each end of the cables. Ask us for IBM EN01, EN02, EN03 features.

25 GbE Transceivers: IBM qualifies and supports SFP28 optical transceiver (FC EB47) to install into the adapter. Customers can also use their own optical cabling and SFP28 optical transceiver for the other end. The 25 Gb optical transceiver is capable up to 100 m through the OM4 cable or 70 M through OM3 cable. Either one or both of the adapter's two SFP28 ports can be populated. Note: The IBM EB47 SFP28 25GbE transceiver only supports 25GbE speeds.

10 GbE Transceivers: IBM qualifies and supports SFP+ optical transceiver IBM EB46 to install into the adapter. Customers can also use their own optical cabling and SFP+ optical transceiver for the other end. The 10 Gb optical transceiver is capable up to 300 M through the OM3 cable or 82 m through OM2 cable. Either one or both of the adapter's two SFP28 ports can be populated.

1GbE Transceivers: IBM qualifies and supports the 1GbE Base-T Transceiver RJ45 (FC EB48) for 25/10Gb Ethernet adapter (features EC2U or EC2T). The 1GbE Base-T RJ45 transceiver uses CAT5E STP cable up to 100m (does not include cable). The transceiver can be plugged into the SFP28 port of the adapter in order to provide a 1GbE Base-T RJ45 connection.
