IBM AS400 iSeries IBM 31E8 16GB DDR3 Power8 Memory IBM 31E8 16GB DDR3 Memory CDIMM has 00JA656 00LP781 00VK192 00VK193 part numbers, EM8B EL3P EM8J EM8.. Product #: IBM-31E8-00VK193

IBM 31E8 00JA656 00LP781 00VK192 00VK193 EM8B EL3P EM8J EM86 Power8 16GB DDR3 Memory

Brand: IBM AS400 iSeries
Model Number: IBM-31E8-00VK193

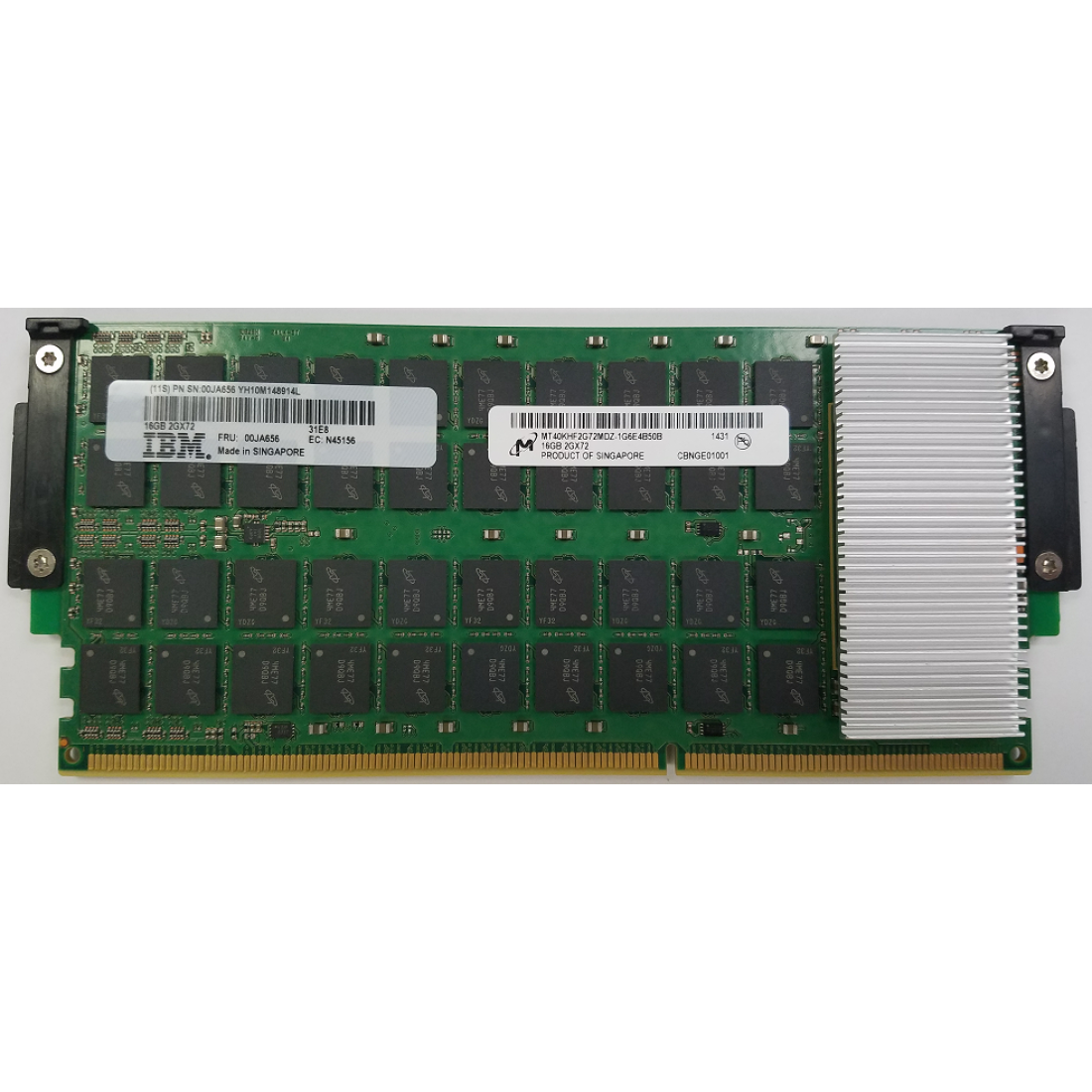

IBM 31E8 16GB DDR3 Memory CDIMM has 00JA656 00LP781 00VK192 00VK193 part numbers, EM8B EL3P EM8J EM86 feature codes, and is supported on 8286-42A, IBM S814 8286-41A and 8247-42L IBM Power8 servers. The maximum quantity of IBM 31E816GB CDIMM, 1600 MHz DDR3 DRAM Memory features that can be installed in the Power8 Server depends on the specific model and number of processor sockets (DCMs). All IBM Power8 Memory includes warranty, free technical support by phone or email and is guaranteed for IBM maintenance and support contracts.

The 8286-42A IBM Power8 S824 server and 8247-42L S824L models with 2 processor sockets can install up to 4TB of memory using 32 memory DIMM slots, or 1TB of IBM memory for single socket systems. IBM Power8 memory DDR4 and DDR3 features deliver the same performance, have the same 1600 MHz speed, deliver up to 128 MB of L4 cache and use the same memory controller.The IBM S814 8286-41A Power8 Server model supports up to 1TB of memory using 8 Memory DIMM slots. View the IBM Power8 Server models pages for other memory specifications and memory feature options.

IBM Power8 Servers supporting IBM 31E8 16GB CDIMM, 1600 MHz DDR3 DRAM Memory feature with 00JA656 00LP781 00VK192 00VK193 part numbers and EM8B EL3P EM8J EM86 feature codes include the IBM S814 8286-41A, IBM S824 8286-42A and IBM S824L 8247-42L. Other IBM Power8 Memory Feature options by model and maximums are as follows:

IBM S814 8286-41A: 1TB DDR4 maximum main storage via 8 DDR4 CDIMM memory slots
IBM S824 8286-42A: 4TB DDR4 maximum main storage via 16 CDIMM  memory slots

IBM S824L8247-42L: 4TB DDR4 maximum main storage via 16 CDIMM memory slots
IBM 31EC16GB DDR4 Memory 00VK25200VK247 00VK248 00VK253 EM91 EM8P EM8U EM96
IBM 31ED32GB DDR4 Memory 00VK296 00VK291 0VK292 00VK297 EM92 EM8Q EM8V EM97 EF20
IBM 31EE64GB DDR4 Memory 00VK306 00VK301 00VK302 00VK307 EM93EM98 EM8R EM8W EF21
IBM 31EF128GB DDR4 Memory 00VK35100VK352 00VK273 00VK274 EM94EM8S EM8X EF22
IBM 31FC256GB DDR4 Memory 00VK243 00VK242 EM8Y EM95 EF23
IBM 31FD 256GB DDR4 Memory 01GY794 EF24

IBM S814 8286-41A: 1TB DDR3 maximum main storagevia 8 DDR3 CDIMM memory slots
IBM S824 8286-42A: 2TB DDR3 maximum main storage via 16 CDIMM memory slots
IBM S824L 8247-42L: 4TB DDR3 maximum main storage via 16 CDIMM memory slots
IBM 31E816GB DDR3 Memory 00VK193 00JA656 00LP781 00VK192 EM8BEL3P EM8J EM86
IBM 31E932GB DDR3 Memory 00VK195 00VK194 EM8C EM8ZEL3Q EM87
IBM 31EA 64GB DDR3 Memory 00VK197 00LP755 00JA677 00VK220 00VK196 EM8D EM8LEL3R EM88
IBM 31EB128GB DDR3 Memory 00VK198 00LP766 00VK372 EM8E EM8M

OS requirements for IBM 31E8 16GB CDIMM, 1600 MHz DDR3 DRAM Memory feature with 00JA656 00LP781 00VK192 00VK193 part numbers and EM8B EL3P EM8J EM86 feature codes:

IBM i V7R1 TR8 or later supported
AIX 6.1 and 7.1 or later supported
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Refer to Software Requirements for specific O/S levels supported
