3685-8203 - IBM Power6 E4A SAS Cable (AE-8203) Adapter to Enclo

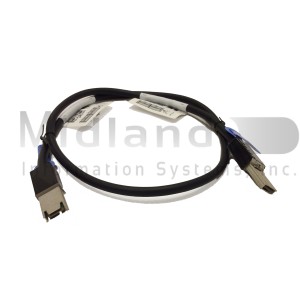

The IBM Power6 8203-E4A (#3685) SAS Cable (AE) Adapter to Enclosure, single controller/single path 6M

This SAS cable (AE) connects a SAS Controller to a media expansion drawer. This cable can also be used to connect two SAS adapters to a SAS disk drawer in a specific dual controller HA two system JBOD configuration using two #5912 controllers. Single controller/single path connections are supported with this cable only for this specific JBOD configuration and as such, two #5912 SAS controllers and two (AE style) cables are required for a supported configuration. The two SAS adapters must be in different host systems/partitions. This cable has one Mini SAS 4X plug connector on the adapter end wired in 4x mode and one Mini SAS 4X plug connector on the drawer end, wired in 4x mode. Follow the directions on the connector labels when attaching the connectors on this cable. This cable is 6 meters long, select the SAS (AE) cable length that best matches the distance between the host system and the remote SAS drawer being attached.

Attributes provided: Connection between a SAS controller and a media expansion drawer or connection between #5912 SAS controller and a SAS disk drawer in a dual controller HA two system JBOD configuration only

Attributes required: SAS media expansion drawer or SAS disk drawer, and a SAS controller adapter

For 8203-E4A: The IBM Power6 8203-E4A (#3685)

Minimum required: 0

Maximum allowed: No max (Initial order maximum: No max)

OS level required: None

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No
