5904-8203 - PCI-X DDR 1.5GB Cache SAS RAID Adapter

The IBM Power6 8203-E4A (#5904) PCI-X DDR 1.5GB Cache SAS RAID Adapter

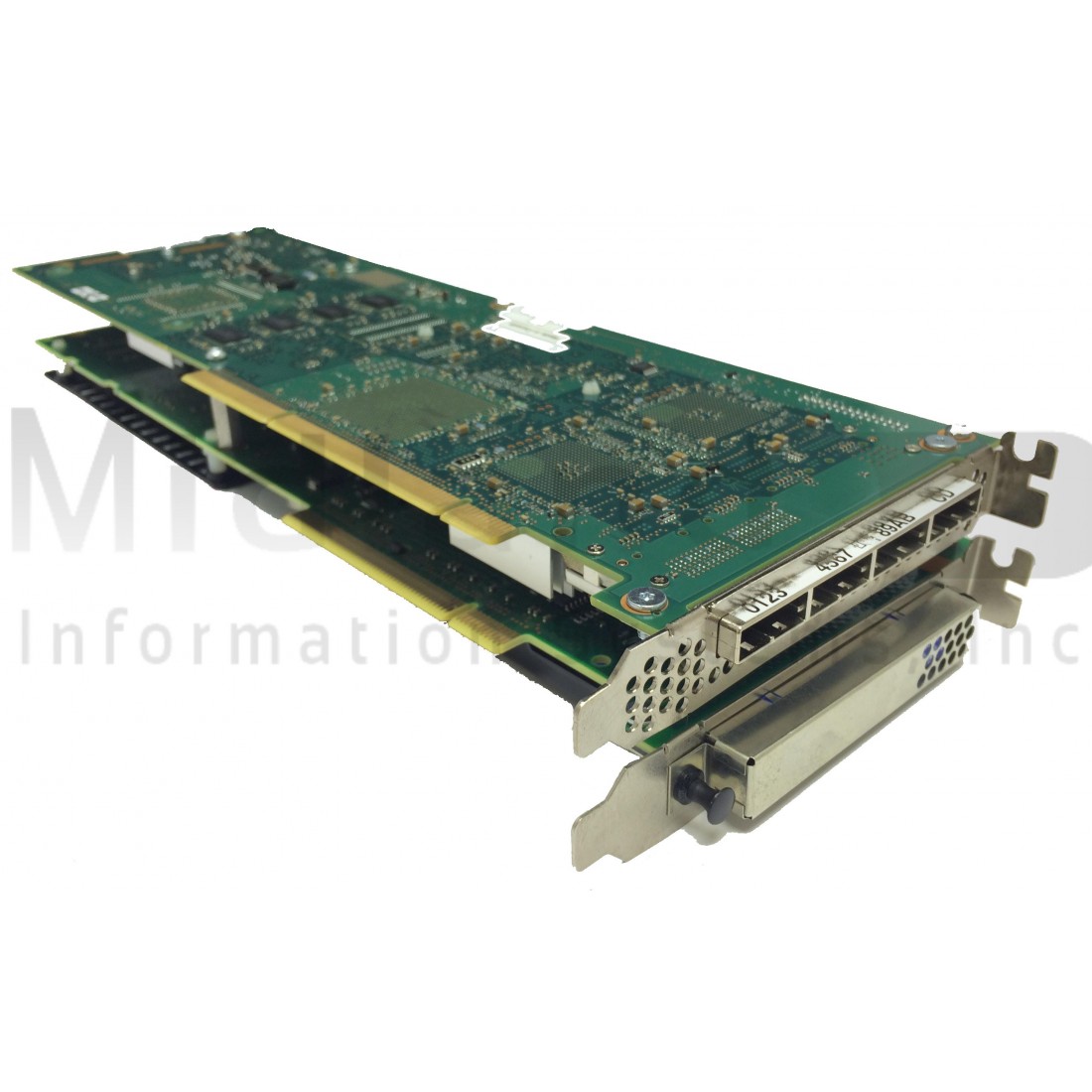

PCI-X DDR 1.5GB Cache SAS RAID Adapter provides disk drive or SSD controller function using PCI-X DDR technology, a maximum of 1.5GB compressed write cache and a maximum 1.6GB compressed read cache. Auxiliary write cache and concurrent battery maintenance are provided. The controller is implemented using two physical cards that are firmly connected and requires two adjacent PCI slots. It provides three mini-SAS 4x connectors for the attachment of SAS drives located in a #5886 EXP 12S Expansion Drawers or Power 520/550 CEC. The controller supports a maximum of five SAS #5886 EXP 12S Expansion Drawers. It supports up to 8 drive slots in the Power 520/ 550 CEC. With proper cabling and configuration, multiple wide ports are used to provide redundant paths to each dual port SAS disk or SSD. The adapter manages SAS path redundancy and path switching should a SAS drive failure occur. CCIN is 572F/575C.

The adapter provides RAID 0, RAID 5, RAID 6 and RAID 10 for AIX and Linux. Under IBM i OS, mirroring and data spreading is provided by the operating system and RAID 5 and RAID6 is provided by the adapter.

#5904, #5906 and #5908 are all feature codes representing the same physical cards, but different feature codes are used to indicate if a blind swap cassette is used and its type. #5904 indicates no blind swap cassette and is used in enclosures such as a Power 550 CEC.

Highlights

SAS speed = 3Gb/s

SAS-SSP, SMP are supported

Supports Single controller with SAS y cables( #3692, 3693, 3694) for #5886 EXP 12S, or with SAS AI cable for Power 520/550 CEC

Built-in auxiliary cache mirrors write cache for redundancy

Attributes provided: PCI-X DDR 1.5GB Cache SAS RAID Adapter

Attributes required: two adjacent PCI-X slots

For 8203-E4A: The IBM Power6 8203-E4A (#5904)

Minimum required: 0

Maximum allowed: 49 (Initial order maximum: 49)

OS level required:

IBM i 5.4.5 or later

AIX 5.3 with the 5300-07 Technology Level and Service Pack 9, or later

AIX 5.3 with the 5300-08 Technology Level and Service Pack 7, or later

AIX 5.3 with the 5300-09 Technology Level and Service Pack 4, or later

AIX 5.3 with the 5300-10 Technology Level, or later

AIX 6.1 with the 6100-00 Technology Level and Service Pack 9, or later

AIX 6.1 with the 6100-01 Technology Level and Service Pack 5, or later

AIX 6.1 with the 6100-02 Technology Level and Service Pack 4, or later

AIX 6.1 with the 6100-03 Technology Level, or later

SUSE LINUX Enterprise Server 10 SP3 for POWER Systems, or later.

Red Hat Enterprise Linux for POWER, Version 5.2 or later.

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No

Note:

AIX supports Max of 29

Linux supports Max of 29

IBM i supports Max of 49
