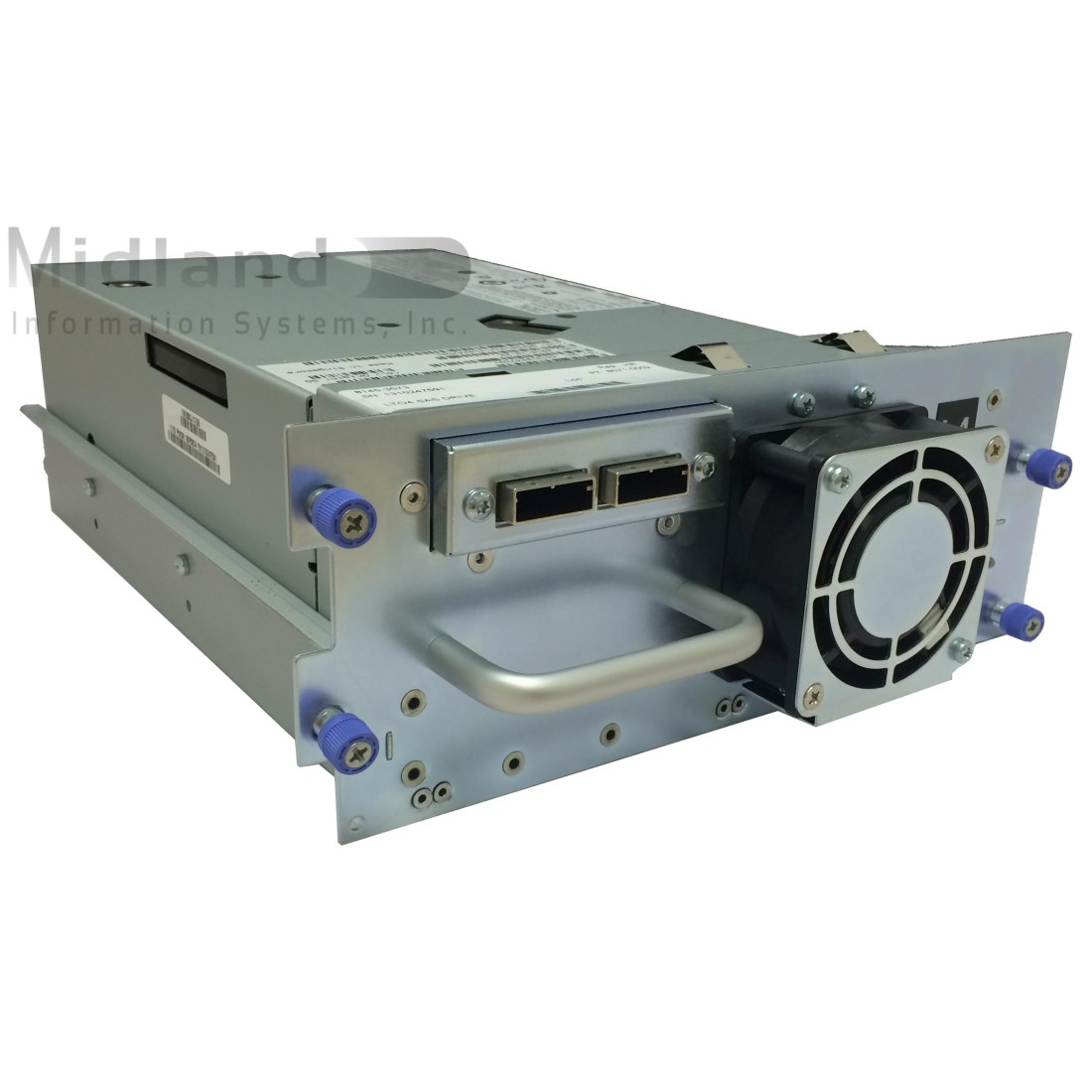

IBM 3573-8145 LTO4 Dual-Port SAS Drive for IBM TS3100 & TS3200

The IBM 3573-8145 LTO4 Dual-Port SAS Ultrium 4 Drive is a sled with a IBM LTO Ultrium 4 Tape Drive and native 3 Gbps dual-ported SAS interface for an IBM TS3200 Tape Library. The IBM 3573-8145 LTO4 SAS Drive can also be installed as an additional Ultrium 4 SAS Tape Drive for an existing TS3200 Tape Library. Please specify the 3573-8145 cables you require to attach the tape library in the TS3200 to host a SAS adapter when ordering.

Maximum number of IBM 3573-8145 features for a TS3100:
One FH Drive (#8043, #8044, #8143, #8144, #8145, #8244, #8245)
Two HH Drives (#8046, #8047, #8147, #8247, #8248)

Maximum number of 3573-8145 features for a TS3200:
Two FH Drives (#8043, #8044, #8143, #8144, #8145, #8244, #8245)
Four HH Drives (#8046, #8047, #8147, #8247, #8248)

Note: The IBM 3573-8145 LTO4 SAS Drives can be intermixed in both the TS3100 & TS3200.
