5783 - IBM PCI-X iSCSI HBA Copper
(#5783) - PCI-X iSCSI HBA Copper

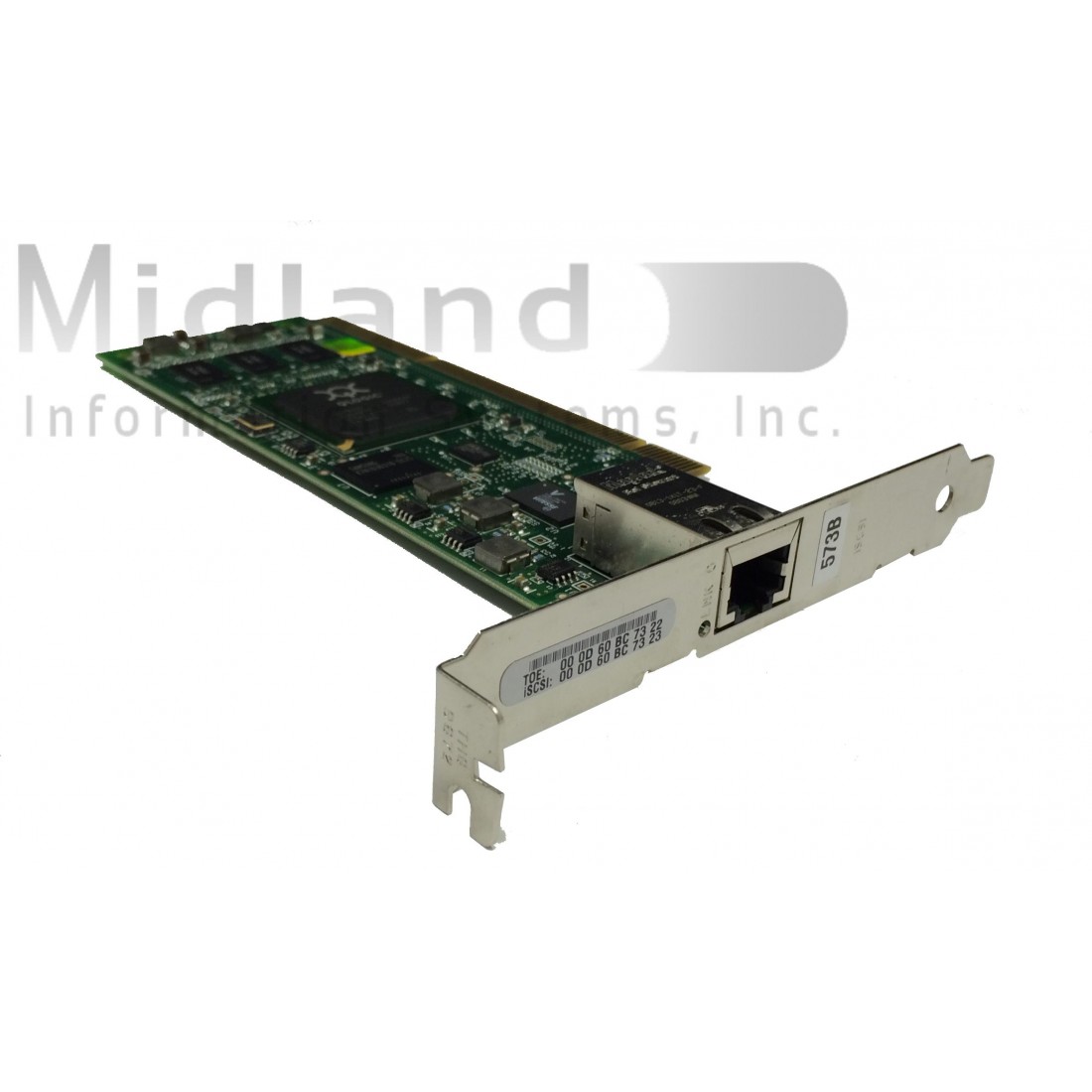

This feature provides a 1Gbps copper iSCSI target HBA, which is used to connect to iSCSI initiator HBAs installed in selected System x models or IBM BladeCenter blade servers. The iSCSI connection is used to provide System i systems management, networking, and disk consolidation features to attached System x or blade servers using a 1Gbps Ethernet LAN.
#5783 uses an RJ45 Gigabit Ethernet connector and provides 1000Mbps connectivity over standard CAT-5e or CAT6 cables to support communications up to a distance of 100m. #5783 conforms to the iEEE 802.3ab 1000Base-T standard.
The 5782 feature is supported on the following IBM AS400, iSeries & Power Systems: 9405-515, 9405-520, 9406-520, 9406-525, 9406-550, 9406-570, 9406-595, 9407-M15, 9408-M25, 9409-M50
Attributes provided: Connection to target host bus adapter (HBA)
Attributes required: Available 3.3V slot
OS level required: i5/OS V5R4, or later
